Specifications: Jeep Liberty I 3.7 i V6 12V (210 Hp) Automatic 2001, 2002, 2003, 2004

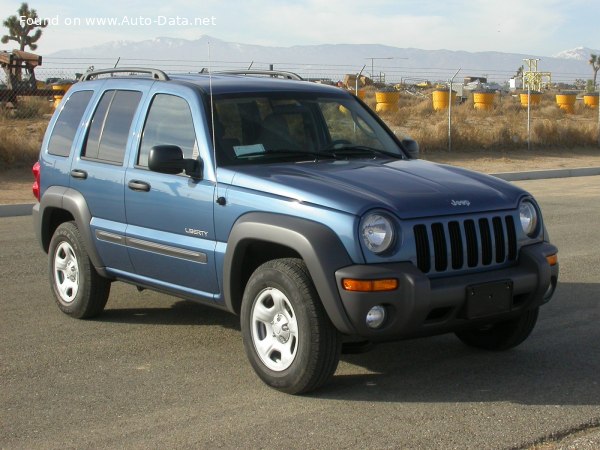

2001 Jeep Liberty I - Photo 1

Jeep Liberty I 3.7 i V6 12V (210 Hp) Automatic – Full specifications
General information
Brand Jeep
Model Liberty
Generation Liberty I
Modification (Engine) 3.7 i V6 12V (210 Hp) Automatic
Start of production 2001 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.8 sec
Acceleration 0 – 62 mph 8.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.4 sec
Maximum speed 180 km/h
111.85 mph
Weight-to-power ratio 7.9 kg/Hp, 126.3 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.2 Nm/tonne
Engine specs
Power 210 Hp @ 5200 rpm.
Power per litre 56.7 Hp/l
Torque 318 Nm @ 4000 rpm.
234.54 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EKG
Engine displacement 3701 cm3
225.85 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 90.8 mm
3.57 in.
Compression ratio 9.1:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13.2 l
13.95 US qt | 11.61 UK qt

Space, Volume and weights
Kerb Weight 1663 kg
3666.29 lbs.
Max. weight 2427 kg
5350.62 lbs.
Max load 764 kg
1684.33 lbs.
Trunk (boot) space – minimum 821 l
28.99 cu. ft.
Trunk (boot) space – maximum 1950 l
68.86 cu. ft.
Fuel tank capacity 74 l
19.55 US gal | 16.28 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 4437 mm
174.69 in.
Width 1819 mm
71.61 in.
Height 1785 mm
70.28 in.
Wheelbase 2649 mm
104.29 in.
Front track 1524 mm
60 in.
Rear (Back) track 1518 mm
59.76 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Approach angle 35.3°
Departure angle 31°
Ramp-over (brakeover) angle 21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 287.02 mm
Rear brakes Disc, 284.48×12.7 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/75 R16
Wheel rims size 7J x 16
