Specifications: Jeep Wagoneer L (WS) 3.0 (420 Hp) 4WD TorqueFlite 2022, 2023, 2024, 2025

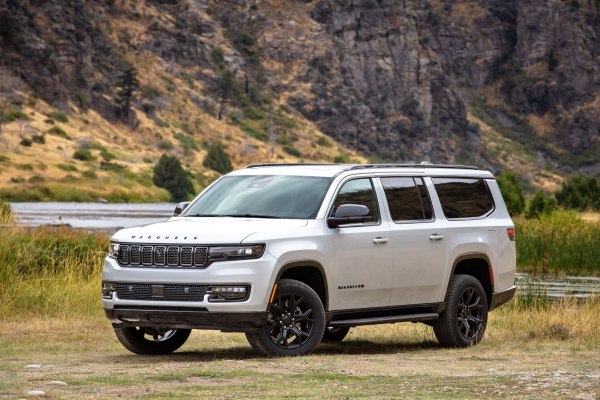

2023 Jeep Wagoneer L (WS) - Photo 1

Jeep Wagoneer L (WS) 3.0 (420 Hp) 4WD TorqueFlite – Full specifications
General information
Brand Jeep
Model Wagoneer
Generation Wagoneer L (WS)
Modification (Engine) 3.0 (420 Hp) 4WD TorqueFlite
Start of production April, 2022 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 14.7 l/100 km
16 US mpg
19.22 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – combined (EPA) 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.8 kg/Hp, 147.1 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 222.3 Nm/tonne
Engine specs
Power 420 Hp @ 5200 rpm.
Power per litre 140.3 Hp/l
Torque 635 Nm @ 3500 rpm.
468.35 lb.-ft. @ 3500 rpm.
Maximum engine speed 5800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Hurricane
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7.1 l
7.5 US qt | 6.25 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.7 l
16.59 US qt | 13.81 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2856-2874 kg
6296.4 – 6336.09 lbs.
Max. weight 3447-3538 kg
7599.33 – 7799.95 lbs.
Max load 591-664 kg
1302.93 – 1463.87 lbs.
Trunk (boot) space – minimum 1192 l
42.1 cu. ft.
Trunk (boot) space – maximum 3707 l
130.91 cu. ft.
Fuel tank capacity 115.4 l
30.49 US gal | 25.38 UK gal
Permitted trailer load with brakes (12%) 4468 kg
9850.25 lbs.
Dimensions
Length 5759 mm
226.73 in.
Width 2124 mm
83.62 in.
Width including mirrors 2388 mm
94.02 in.
Height 1963 mm
77.28 in.
Wheelbase 3303 mm
130.04 in.
Front track 1738 mm
68.43 in.
Rear (Back) track 1734 mm
68.27 in.
Ride height (ground clearance) 210-253 mm
8.27 – 9.96 in.
Drag coefficient (Cd) 0.352
Minimum turning circle (turning diameter) 12.9 m
42.32 ft.
Approach angle 21.5-25°
Departure angle 18.8-21.3°
Ramp-over (brakeover) angle 17.8-20.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission TorqueFlite
Front suspension Coil spring, Double wishbone, Transverse stabilizer, Air Suspension – Optional
Rear suspension Independent multi-link spring suspension with stabilizer, Air Suspension – Optional
Front brakes Ventilated discs, 378×30 mm
Rear brakes Disc, 375×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 275/65 R18; 275/55 R20; 285/45 R22
Wheel rims size 8J x 18; 9J x 20; 9J x 22
