Specifications: Jeep Wagoneer S 100.5 kWh (608 Hp) 4WD Electric 2024, 2025

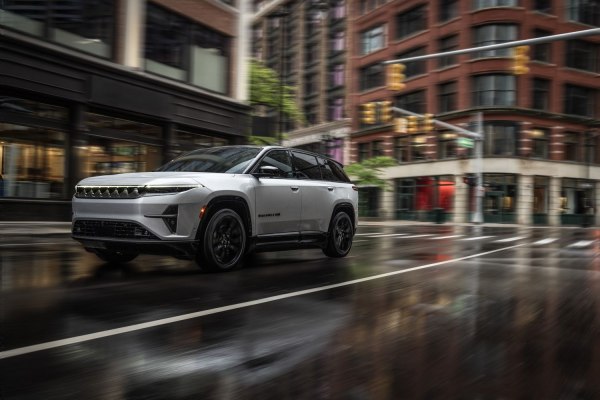

2024 Jeep Wagoneer S - Photo 1

Jeep Wagoneer S 100.5 kWh (608 Hp) 4WD Electric – Full specifications
General information
Brand Jeep
Model Wagoneer S
Generation Wagoneer S
Modification (Engine) 100.5 kWh (608 Hp) 4WD Electric
Start of production May, 2024 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 60 mph 3.4 sec
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 4.2 kg/Hp, 236.5 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 325.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 100.5 kWh
Battery voltage 400 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor
All-electric range 482.8 km
300 mi
Average Energy consumption 21.2 kWh/100 km

34.12 kWh/100 mi
99 MPGe
4.7 km/kWh
2.9 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 340 Hp
Electric motor location Front axle, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor power 340 Hp
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 608 Hp
System torque 837 Nm
617.34 lb.-ft.

Space, Volume and weights
Kerb Weight 2571 kg
5668.08 lbs.
Max. weight 3039 kg
6699.85 lbs.
Max load 468 kg
1031.76 lbs.
Trunk (boot) space – minimum 866 l
30.58 cu. ft.
Trunk (boot) space – maximum 1727 l
60.99 cu. ft.
Permitted trailer load with brakes (12%) 1542 kg
3399.53 lbs.
Dimensions
Length 4886 mm
192.36 in.
Width 1900 mm
74.8 in.
Width including mirrors 2123 mm
83.58 in.
Height 1645 mm
64.76 in.
Wheelbase 2870 mm
112.99 in.
Front track 1636 mm
64.41 in.
Rear (Back) track 1639 mm
64.53 in.
Ride height (ground clearance) 162 mm
6.38 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 19.2°
Departure angle 23.4°
Ramp-over (brakeover) angle 14°
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 354×28 mm
Rear brakes Ventilated discs, 350×22 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/50 R20 XL
Wheel rims size 8.5J x 20
