Specifications: Jeep Wrangler III (JK) Sahara 2.8 CRDi (197 Hp) 4×4 Automatic 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

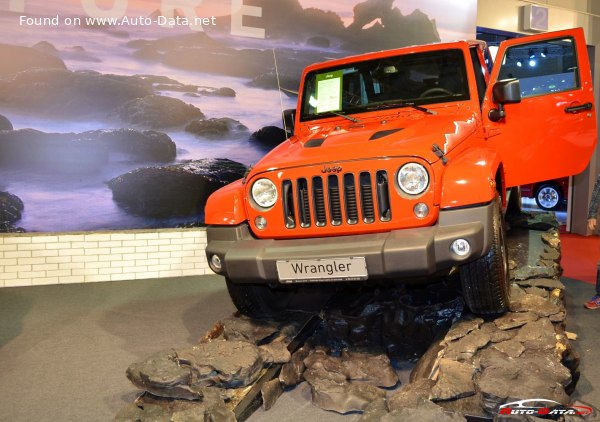

2007 Jeep Wrangler III (JK) - Photo 1

Jeep Wrangler III (JK) Sahara 2.8 CRDi (197 Hp) 4×4 Automatic – Full specifications
General information
Brand Jeep
Model Wrangler
Generation Wrangler III (JK)
Modification (Engine) Sahara 2.8 CRDi (197 Hp) 4×4 Automatic
Start of production 2011 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 9.7 l/100 km
24.25 US mpg
29.12 UK mpg
10.31 km/l
Fuel consumption (economy) – extra urban 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
Fuel consumption (economy) – combined 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
CO2 emissions 209 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.6 sec
Acceleration 0 – 62 mph 10.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.1 sec
Maximum speed 172 km/h
106.88 mph
Emission standard Euro 5
Weight-to-power ratio 9.4 kg/Hp, 106 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 247.6 Nm/tonne
Engine specs
Power 197 Hp @ 3600 rpm.
Power per litre 71 Hp/l
Torque 460 Nm @ 1600-2600 rpm.
339.28 lb.-ft. @ 1600-2600 rpm.
Maximum engine speed 4600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ENS
Engine displacement 2776 cm3
169.4 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1858 kg
4096.19 lbs.
Max. weight 2506 kg
5524.78 lbs.
Max load 648 kg
1428.6 lbs.
Trunk (boot) space – minimum 142 l
5.01 cu. ft.
Trunk (boot) space – maximum 430 l
15.19 cu. ft.
Fuel tank capacity 66 l
17.44 US gal | 14.52 UK gal
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4223 mm
166.26 in.
Width 1873 mm
73.74 in.
Height 1840 mm
72.44 in.
Wheelbase 2424 mm
95.43 in.
Front track 1572 mm
61.89 in.
Rear (Back) track 1572 mm
61.89 in.
Ride height (ground clearance) 259 mm
10.2 in.
Drag coefficient (Cd) 0.495
Minimum turning circle (turning diameter) 10.36 m
33.99 ft.
Approach angle 38.1°
Departure angle 31.3°
Ramp-over (brakeover) angle 25.9°
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Rigid axle suspension
Rear suspension Rigid axle suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 245/75 R17
Wheel rims size 17
