Specifications: Jeep Wrangler IV Unlimited (JL, facelift 2023) Rubicon 3.6 Pentastar V6 (290 Hp) 4×4 2023, 2024, 2025

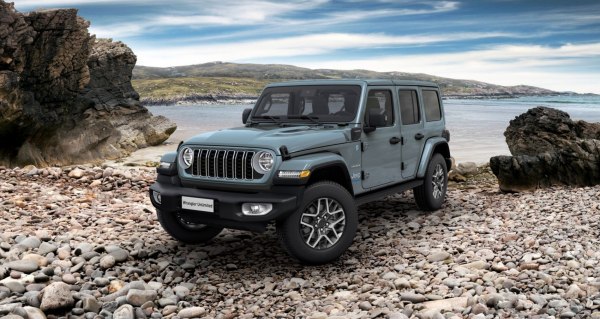

2024 Jeep Wrangler IV Unlimited (JL, facelift 2023) - Photo 1

Jeep Wrangler IV Unlimited (JL, facelift 2023) Rubicon 3.6 Pentastar V6 (290 Hp) 4×4 – Full specifications
General information
Brand Jeep
Model Wrangler
Generation Wrangler IV Unlimited (JL, facelift 2023)
Modification (Engine) Rubicon 3.6 Pentastar V6 (290 Hp) 4×4
Start of production April, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.2 kg/Hp, 139.8 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 170.1 Nm/tonne
Engine specs
Power 290 Hp @ 6400 rpm.
Power per litre 80.5 Hp/l
Torque 353 Nm @ 4800 rpm.
260.36 lb.-ft. @ 4800 rpm.
Maximum engine speed 6600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Pentastar
Engine displacement 3604 cm3
219.93 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96.01 mm
3.78 in.
Piston Stroke 83.06 mm
3.27 in.
Compression ratio 11.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.1 l
10.67 US qt | 8.89 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2075 kg
4574.59 lbs.
Trunk (boot) space – minimum 898 l
31.71 cu. ft.
Trunk (boot) space – maximum 2050 l
72.4 cu. ft.
Fuel tank capacity 81 l
21.4 US gal | 17.82 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Dimensions
Length 4785 mm
188.39 in.
Width 1877 mm
73.9 in.
Height 1869 mm
73.58 in.
Wheelbase 3008 mm
118.43 in.
Front track 1636 mm
64.41 in.
Rear (Back) track 1636 mm
64.41 in.
Front overhang 742 mm
29.21 in.
Rear overhang 1036 mm
40.79 in.
Ride height (ground clearance) 274 mm
10.79 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 43.9°
Departure angle 37°
Ramp-over (brakeover) angle 22.6°
Wading depth 762 mm
30 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut, Coil spring, Rigid axle suspension
Rear suspension Spring Strut, Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 330×28 mm
Rear brakes Disc, 342×14 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size LT285/70 R17
Wheel rims size 7.5J x 17
