Specifications: Jeep Wrangler IV Unlimited (JL) Sahara 2.0 Turbo (270 Hp) eTorque Mild Hybrid 4×4 Automatic 2017, 2018, 2019, 2020

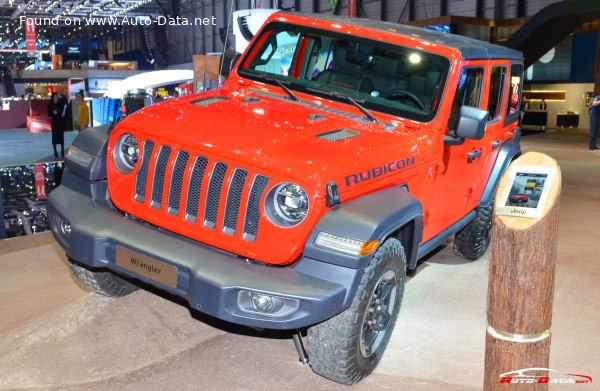

2018 Jeep Wrangler IV Unlimited (JL) - Photo 1

Jeep Wrangler IV Unlimited (JL) Sahara 2.0 Turbo (270 Hp) eTorque Mild Hybrid 4×4 Automatic – Full specifications
General information
Brand Jeep
Model Wrangler
Generation Wrangler IV Unlimited (JL)
Modification (Engine) Sahara 2.0 Turbo (270 Hp) eTorque Mild Hybrid 4×4 Automatic
Start of production November, 2017 year
End of production August, 2020 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Off-road vehicle
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – extra urban (EPA) 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.4 kg/Hp, 135.1 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 200.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.43 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the rear seats
Electric motor 1
Electric motor location Front, Longitudinal
Internal combustion engine specs
Power 270 Hp @ 5250 rpm.
Power per litre 135.3 Hp/l
Torque 400 Nm @ 3000 rpm.
295.02 lb.-ft. @ 3000 rpm.
Maximum engine speed 5800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Hurricane / EC3
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 4.73 l
5 US qt | 4.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.4 l
9.93 US qt | 8.27 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1999 kg
4407.04 lbs.
Max. weight 2546 kg
5612.97 lbs.
Max load 547 kg
1205.93 lbs.
Trunk (boot) space – minimum 548 l
19.35 cu. ft.
Trunk (boot) space – maximum 1059 l
37.4 cu. ft.
Fuel tank capacity 81 l
21.4 US gal | 17.82 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Dimensions
Length 4785 mm
188.39 in.
Width 1875 mm
73.82 in.
Height 1868 mm
73.54 in.
Wheelbase 3008 mm
118.43 in.
Front track 1598 mm
62.91 in.
Rear (Back) track 1598 mm
62.91 in.
Front overhang 742 mm
29.21 in.
Rear overhang 1036 mm
40.79 in.
Ride height (ground clearance) 254 mm
10 in.
Minimum turning circle (turning diameter) 12 m
39.37 ft.
Approach angle 41.8°
Departure angle 36.1°
Ramp-over (brakeover) angle 21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running only in mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Coil spring, Rigid axle suspension, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 330×28 mm
Rear brakes Disc, 342×14 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
Power steering Electric Steering
Tires size 255/70 R18
Wheel rims size 7.5J x 18
