Specifications: Kia Carens III 1.7 CRDI (141 Hp) ISG 2016

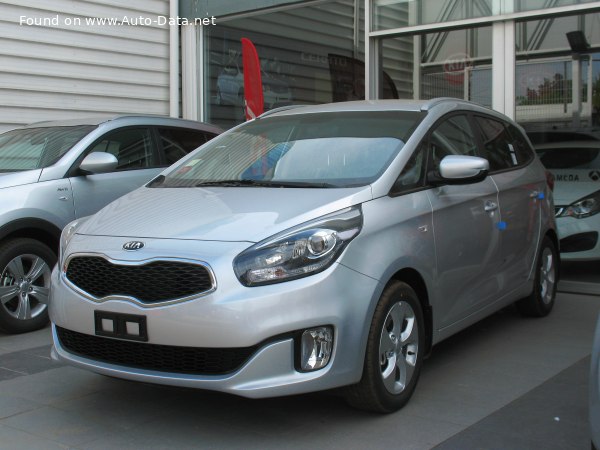

2013 Kia Carens III - Photo 1

Kia Carens III 1.7 CRDI (141 Hp) ISG – Full specifications
General information
Brand Kia
Model Carens
Generation Carens III
Modification (Engine) 1.7 CRDI (141 Hp) ISG
Start of production January, 2016 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
CO2 emissions 118 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.4 sec
Acceleration 0 – 62 mph 10.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.9 sec
Maximum speed 193 km/h
119.92 mph
Emission standard Euro 6
Weight-to-power ratio 10.6 kg/Hp, 94.5 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 227.9 Nm/tonne
Engine specs
Power 141 Hp @ 4000 rpm.
Power per litre 83.7 Hp/l
Torque 340 Nm @ 1750-2500 rpm.
250.77 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code U II / D4FD
Engine displacement 1685 cm3
102.83 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77.2 mm
3.04 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 15.7:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1492-1617 kg
3289.3 – 3564.87 lbs.
Max. weight 2110 kg
4651.75 lbs.
Max load 493-618 kg
1086.88 – 1362.46 lbs.
Trunk (boot) space – minimum 536 l
18.93 cu. ft.
Trunk (boot) space – maximum 1694 l
59.82 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4525 mm
178.15 in.
Width 1805 mm
71.06 in.
Height 1610 mm
63.39 in.
Wheelbase 2750 mm
108.27 in.
Front track 1563-1573 mm
61.54 – 61.93 in.
Rear (Back) track 1576-1586 mm
62.05 – 62.44 in.
Front overhang 940 mm
37.01 in.
Rear overhang 835 mm
32.87 in.
Minimum turning circle (turning diameter) 11.0 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/45 R17; 225/45 R18;
Wheel rims size 6.5J x 16; 7J x 17; 7.5J x 18
