Specifications: Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 2016, 2017, 2018, 2019

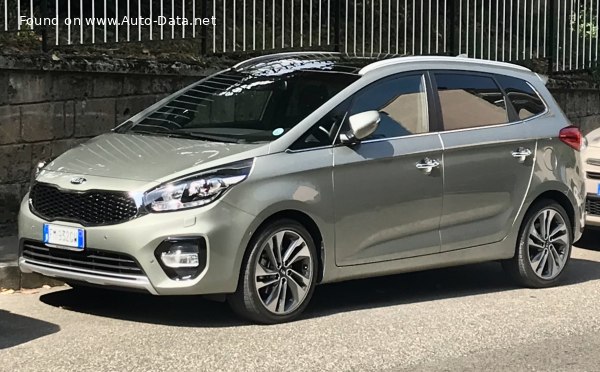

2017 Kia Carens III (facelift 2016) - Photo 1

Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic – Full specifications
General information
Brand Kia
Model Carens
Generation Carens III (facelift 2016)
Modification (Engine) 2.0 GDI (166 Hp) Automatic
Start of production 2016 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel consumption (economy) – combined (NEDC) 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
CO2 emissions (NEDC) 182 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.8 sec
Acceleration 0 – 62 mph 10.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.3 sec
Maximum speed 198 km/h
123.03 mph
Emission standard Euro 6
Weight-to-power ratio 8.7 kg/Hp, 114.9 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 147.4 Nm/tonne
Engine specs
Power 166 Hp @ 6500 rpm.
Power per litre 83 Hp/l
Torque 213 Nm @ 4700 rpm.
157.1 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code G4NC
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1445-1564 kg
3185.68 – 3448.03 lbs.
Max. weight 2060 kg
4541.52 lbs.
Max load 496-615 kg
1093.49 – 1355.84 lbs.
Trunk (boot) space – minimum 536 l
18.93 cu. ft.
Trunk (boot) space – maximum 1694 l
59.82 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 740 kg
1631.42 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4525 mm
178.15 in.
Width 1805 mm
71.06 in.
Height 1610 mm
63.39 in.
Wheelbase 2750 mm
108.27 in.
Front track 1563-1573 mm
61.54 – 61.93 in.
Rear (Back) track 1576-1586 mm
62.05 – 62.44 in.
Front overhang 940 mm
37.01 in.
Rear overhang 835 mm
32.87 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs, 300 mm
Rear brakes Disc, 284 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16 91V; 225/45 R17 91V; 225/45 R18 95V
Wheel rims size 6.5J x 16 ET48.5; 7.0J x 17 ET50.5; 7.5J x 18 ET53.5
