Specifications: Kia Carnival II (VQ) 2.9 CRDi (185 Hp) 2006, 2007, 2008, 2009, 2010

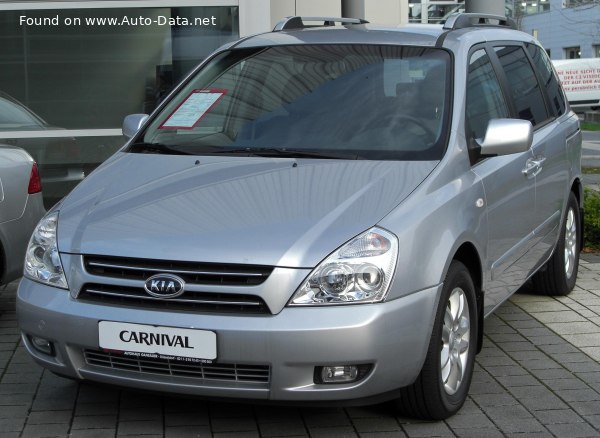

2006 Kia Carnival II (VQ) - Photo 1

Kia Carnival II (VQ) 2.9 CRDi (185 Hp) – Full specifications
General information
Brand Kia
Model Carnival
Generation Carnival II (VQ)
Modification (Engine) 2.9 CRDi (185 Hp)
Start of production 2006 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel Type Diesel
Maximum speed 197 km/h
122.41 mph
Weight-to-power ratio 11.3 kg/Hp, 88.4 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 163.9 Nm/tonne
Engine specs
Power 185 Hp @ 3800 rpm.
Power per litre 63.7 Hp/l
Torque 343 Nm @ 1750-3500 rpm.
252.98 lb.-ft. @ 1750-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code J3
Engine displacement 2902 cm3
177.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 97.1 mm
3.82 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.6 l
6.97 US qt | 5.81 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 2093 kg
4614.28 lbs.
Max. weight 2900 kg
6393.41 lbs.
Max load 807 kg
1779.13 lbs.
Trunk (boot) space – minimum 241 l
8.51 cu. ft.
Trunk (boot) space – maximum 1666 l
58.83 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4810 mm
189.37 in.
Width 1985 mm
78.15 in.
Height 1815 mm
71.46 in.
Wheelbase 2890 mm
113.78 in.
Front track 1685 mm
66.34 in.
Rear (Back) track 1685 mm
66.34 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 11.64 m
38.19 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Dependent spring suspension with transverse stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/70 R16
Wheel rims size 16
