Specifications: Kia Carnival IV (facelift 2023) 3.5 GDI Smartstream V6 (294 Hp) Automatic 9 Seats 2023, 2024, 2025

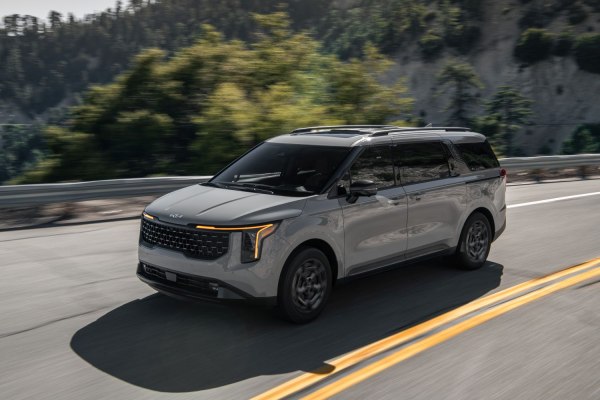

2025 Kia Carnival IV (facelift 2023) - Photo 1

Kia Carnival IV (facelift 2023) 3.5 GDI Smartstream V6 (294 Hp) Automatic 9 Seats – Full specifications
General information
Brand Kia
Model Carnival
Generation Carnival IV (facelift 2023)
Modification (Engine) 3.5 GDI Smartstream V6 (294 Hp) Automatic 9 Seats
Start of production November, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 9
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.8-13 l/100 km
18.38 – 18.09 US mpg
22.07 – 21.73 UK mpg
7.81 – 7.69 km/l
Fuel consumption (economy) – extra urban 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
Fuel consumption (economy) – combined 11.1-11.2 l/100 km
21.19 – 21 US mpg
25.45 – 25.22 UK mpg
9.01 – 8.93 km/l
CO2 emissions 189-192 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.1 kg/Hp, 141.3 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 170.7 Nm/tonne
Engine specs
Power 294 Hp @ 6400 rpm.
Power per litre 84.7 Hp/l
Torque 355 Nm @ 5000 rpm.
261.83 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G6DT
Engine displacement 3470 cm3
211.75 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 87 mm
3.43 in.
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 2080-2090 kg
4585.62 – 4607.66 lbs.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Dimensions
Length 5155 mm
202.95 in.
Width 1995 mm
78.54 in.
Width including mirrors 2266 mm
89.21 in.
Height 1775 mm
69.88 in.
Wheelbase 3090 mm
121.65 in.
Front track 1741-1746 mm
68.54 – 68.74 in.
Rear (Back) track 1741-1746 mm
68.54 – 68.74 in.
Front overhang 935 mm
36.81 in.
Rear overhang 1130 mm
44.49 in.
Ride height (ground clearance) 173 mm
6.81 in.
Approach angle 15.4°
Departure angle 20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 325 mm
Rear brakes Disc, 325 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18; 235/55 R19
Wheel rims size 7J x 18; 7.5J x 19
