Specifications: Kia Cee’d I 2.0 CRDi (140 Hp) 2007, 2008, 2009

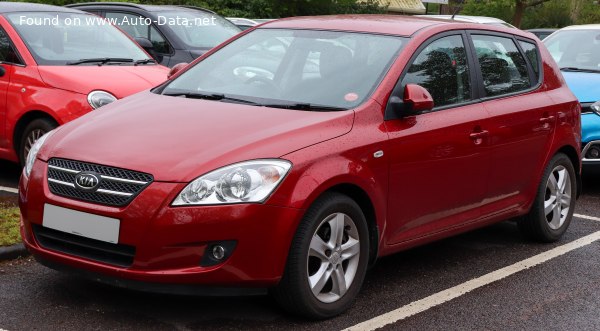

2007 Kia Cee'd I - Photo 1

Kia Cee’d I 2.0 CRDi (140 Hp) – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d I
Modification (Engine) 2.0 CRDi (140 Hp)
Start of production 2007 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel consumption (economy) – combined (NEDC) 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
CO2 emissions (NEDC) 149 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 205 km/h
127.38 mph
Emission standard Euro 4
Weight-to-power ratio 10.4 kg/Hp, 96 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.2 Nm/tonne
Engine specs
Power 140 Hp @ 3800 rpm.
Power per litre 70.3 Hp/l
Torque 305 Nm @ 1800-2500 rpm.
224.96 lb.-ft. @ 1800-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code D4EA
Engine displacement 1991 cm3
121.5 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 17.3:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 5.9 l
6.23 US qt | 5.19 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.3 l
7.71 US qt | 6.42 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1458-1533 kg
3214.34 – 3379.69 lbs.
Max. weight 1880 kg
4144.69 lbs.
Max load 347-422 kg
765 – 930.35 lbs.
Trunk (boot) space – minimum 340 l
12.01 cu. ft.
Trunk (boot) space – maximum 1300 l
45.91 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 550 kg
1212.54 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4235 mm
166.73 in.
Width 1790 mm
70.47 in.
Height 1480 mm
58.27 in.
Wheelbase 2650 mm
104.33 in.
Front track 1546 mm
60.87 in.
Rear (Back) track 1544 mm
60.79 in.
Front overhang 865 mm
34.06 in.
Rear overhang 720 mm
28.35 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 185/65 R15; 195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size 5.5J x 15; 6J x 16; 7J x 17
