Specifications: Kia Cee’d I (facelift 2009) 1.6D 16V (128 Hp) 2009, 2010, 2011, 2012

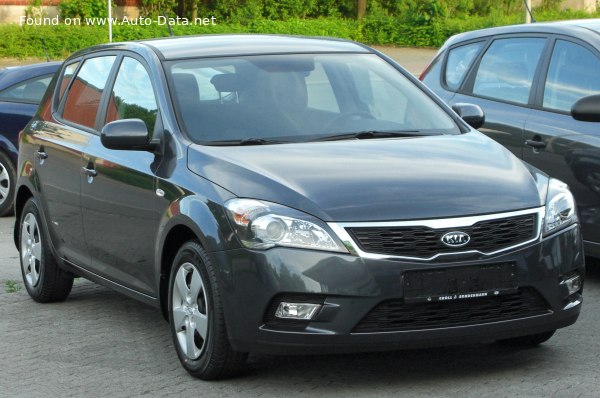

2009 Kia Cee'd I (facelift 2009) - Photo 1

Kia Cee’d I (facelift 2009) 1.6D 16V (128 Hp) – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d I (facelift 2009)
Modification (Engine) 1.6D 16V (128 Hp)
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel consumption (economy) – extra urban 4.1 l/100 km
57.37 US mpg
68.9 UK mpg
24.39 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11 sec
Acceleration 0 – 62 mph 11 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 197 km/h
122.41 mph
Emission standard Euro 5
Weight-to-power ratio 10.7 kg/Hp, 93.2 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 185.6 Nm/tonne
Engine specs
Power 128 Hp
Power per litre 80.9 Hp/l
Torque 255 Nm @ 1900 rpm.
188.08 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code D4FB
Engine displacement 1582 cm3
96.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1374 kg
3029.15 lbs.
Max. weight 1840 kg
4056.51 lbs.
Max load 466 kg
1027.35 lbs.
Trunk (boot) space – minimum 340 l
12.01 cu. ft.
Trunk (boot) space – maximum 1300 l
45.91 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Dimensions
Length 4235 mm
166.73 in.
Width 1790 mm
70.47 in.
Height 1480 mm
58.27 in.
Wheelbase 2650 mm
104.33 in.
Front track 1538 mm
60.55 in.
Rear (Back) track 1536 mm
60.47 in.
Minimum turning circle (turning diameter) 10.34 m
33.92 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 16
