Specifications: Kia Cee’d II (facelift 2015) 1.6 GDI (135 Hp) 2015, 2016, 2017, 2018

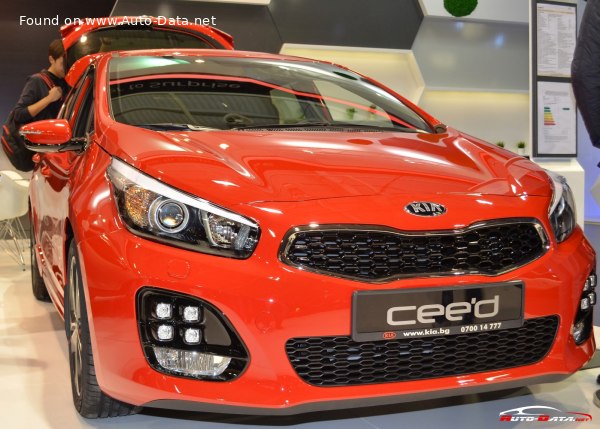

2015 Kia Cee'd II (facelift 2015) - Photo 1

Kia Cee’d II (facelift 2015) 1.6 GDI (135 Hp) – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d II (facelift 2015)
Modification (Engine) 1.6 GDI (135 Hp)
Start of production June, 2015 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.8 l/100 km
30.16 US mpg
36.22 UK mpg
12.82 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption (economy) – combined 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
CO2 emissions 135 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 195 km/h
121.17 mph
Emission standard Euro 6
Weight-to-power ratio 8.9 kg/Hp, 112.9 Hp/tonne
Weight-to-torque ratio 7.2 kg/Nm, 138 Nm/tonne
Engine specs
Power 135 Hp @ 6300 rpm.
Power per litre 84.9 Hp/l
Torque 165 Nm @ 4850 rpm.
121.7 lb.-ft. @ 4850 rpm.
Engine layout Front, Transverse
Engine Model/Code G4FD
Engine displacement 1591 cm3
97.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.44 mm
3.36 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt

Space, Volume and weights
Kerb Weight 1196-1330 kg
2636.73 – 2932.15 lbs.
Max. weight 1820 kg
4012.41 lbs.
Max load 490-624 kg
1080.27 – 1375.68 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Trunk (boot) space – maximum 1318 l
46.54 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4310 mm
169.69 in.
Width 1780 mm
70.08 in.
Width including mirrors 2035 mm
80.12 in.
Height 1470 mm
57.87 in.
Wheelbase 2650 mm
104.33 in.
Front track 1549-1563 mm
60.98 – 61.54 in.
Rear (Back) track 1557-1571 mm
61.3 – 61.85 in.
Front overhang 900 mm
35.43 in.
Rear overhang 760 mm
29.92 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 280-300 mm
Rear brakes Disc, 262-284 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15 91H; 205/55 R16 91H; 225/45 R17 91V
Wheel rims size 6; 0J x 15 ET46; 6; 5J x 16 ET50; 7; 0J x 17 ET53
