Specifications: Kia Ceed III Sportswagon 1.6 CRDi (115 Hp) Mild Hybrid DCT 2020, 2021

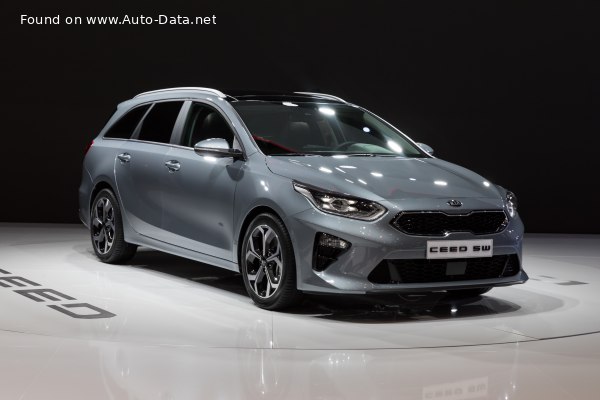

2018 Kia Ceed III Sportswagon - Photo 1

Kia Ceed III Sportswagon 1.6 CRDi (115 Hp) Mild Hybrid DCT – Full specifications
General information
Brand Kia
Model Cee’d
Generation Ceed III Sportswagon
Modification (Engine) 1.6 CRDi (115 Hp) Mild Hybrid DCT
Start of production April, 2020 year
End of production January, 2021 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 4.2-4.3 l/100 km
56 – 54.7 US mpg
67.26 – 65.69 UK mpg
23.81 – 23.26 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 3.7-3.9 l/100 km
63.57 – 60.31 US mpg
76.35 – 72.43 UK mpg
27.03 – 25.64 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 3.8-4 l/100 km
61.9 – 58.8 US mpg
74.34 – 70.62 UK mpg
26.32 – 25 km/l
CO2 emissions (NEDC, WLTP equivalent) 100-105 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.1 sec
Acceleration 0 – 62 mph 11.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 192 km/h
119.3 mph
Emission standard Euro 6d TEMP
Weight-to-power ratio 12.2 kg/Hp, 81.7 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 213.2 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.46 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the trunk
Electric motor 1
Electric motor power 14 Hp
Electric motor location Front, Transverse
Internal combustion engine specs
Power 115 Hp @ 4000 rpm.
Power per litre 72 Hp/l
Torque 300 Nm @ 1500-2500 rpm.
221.27 lb.-ft. @ 1500-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / D4FE
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Compression ratio 15.9:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.7 l
8.14 US qt | 6.78 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1407-1528 kg
3101.9 – 3368.66 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 432-553 kg
952.4 – 1219.16 lbs.
Trunk (boot) space – minimum 512 l
18.08 cu. ft.
Trunk (boot) space – maximum 1581 l
55.83 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 650 kg
1433 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4600 mm
181.1 in.
Width 1800 mm
70.87 in.
Width including mirrors 2055 mm
80.91 in.
Height 1465 mm
57.68 in.
Wheelbase 2650 mm
104.33 in.
Front track 1559-1573 mm
61.38 – 61.93 in.
Rear (Back) track 1567-1581 mm
61.69 – 62.24 in.
Front overhang 880 mm
34.65 in.
Rear overhang 1070 mm
42.13 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DCT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 280×23 mm
Rear brakes Disc, 272×10 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size 6J x 15; 6.5J x 16; 7J x 17
