Specifications: Kia Ceed III Sportswagon (facelift 2021) 1.0 T-GDI (100 Hp) 2024, 2025

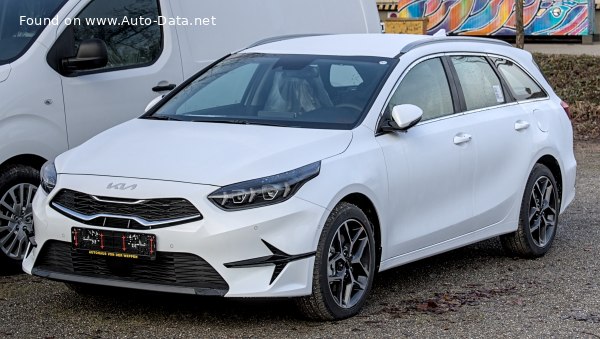

2022 Kia Ceed III Sportswagon (facelift 2021) - Photo 1

Kia Ceed III Sportswagon (facelift 2021) 1.0 T-GDI (100 Hp) – Full specifications
General information
Brand Kia
Model Cee’d
Generation Ceed III Sportswagon (facelift 2021)
Modification (Engine) 1.0 T-GDI (100 Hp)
Start of production May, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
Fuel consumption at Medium speed (WLTP) 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel consumption at high speed (WLTP) 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
Fuel consumption at very high speed (WLTP) 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Combined fuel consumption (WLTP) 6.4 l/100 km
36.75 US mpg
44.14 UK mpg
15.63 km/l
CO2 emissions (WLTP) 146 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.3 sec
Acceleration 0 – 62 mph 13.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.6 sec
Maximum speed 178 km/h
110.6 mph
Emission standard Euro 6e
Weight-to-power ratio 12.6 kg/Hp, 79.4 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.5 Nm/tonne
Engine specs
Power 100 Hp @ 6000 rpm.
Power per litre 100.2 Hp/l
Torque 172 Nm @ 1500-3500 rpm.
126.86 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code Kappa II / G3LC
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.5 l
5.81 US qt | 4.84 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1260-1386 kg
2777.82 – 3055.61 lbs.
Max. weight 1820 kg
4012.41 lbs.
Max load 434-560 kg
956.81 – 1234.59 lbs.
Trunk (boot) space – minimum 625 l
22.07 cu. ft.
Trunk (boot) space – maximum 1694 l
59.82 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1010 kg
2226.67 lbs.
Permitted trailer load without brakes 510 kg
1124.36 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4605 mm
181.3 in.
Width 1800 mm
70.87 in.
Width including mirrors 2055 mm
80.91 in.
Height 1465 mm
57.68 in.
Wheelbase 2650 mm
104.33 in.
Front track 1555-1565 mm
61.22 – 61.61 in.
Rear (Back) track 1563-1573 mm
61.54 – 61.93 in.
Front overhang 885 mm
34.84 in.
Rear overhang 1070 mm
42.13 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 305×25 mm
Rear brakes Disc, 272-284×10 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 6.5J x 16 ET50; 7.0J x 17 ET53; 7.5J x 18 ET55
