Specifications: Kia Cee’d SW I (facelift 2009) 1.6 CRDi 16V (128 Hp) 2009, 2010, 2011, 2012

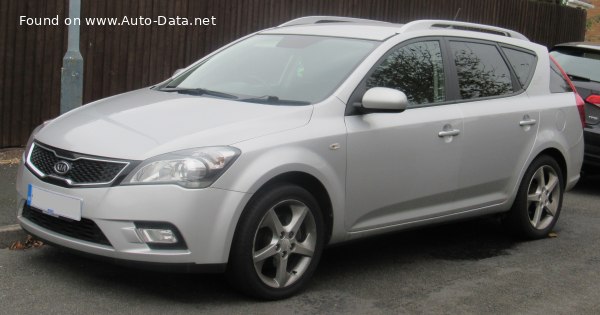

2009 Kia Cee'd SW I (facelift 2009) - Photo 1

Kia Cee’d SW I (facelift 2009) 1.6 CRDi 16V (128 Hp) – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d SW I (facelift 2009)
Modification (Engine) 1.6 CRDi 16V (128 Hp)
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.3 l/100 km
44.38 US mpg
53.3 UK mpg
18.87 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
Fuel consumption (economy) – combined 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 197 km/h
122.41 mph
Emission standard Euro 5
Weight-to-power ratio 11.1 kg/Hp, 90.2 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 179.7 Nm/tonne
Engine specs
Power 128 Hp
Power per litre 80.9 Hp/l
Torque 255 Nm @ 1900 rpm.
188.08 lb.-ft. @ 1900 rpm.
Engine layout Front, Transverse
Engine Model/Code D4FB
Engine displacement 1582 cm3
96.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1419 kg
3128.36 lbs.
Max. weight 1920 kg
4232.88 lbs.
Max load 501 kg
1104.52 lbs.
Trunk (boot) space – minimum 534 l
18.86 cu. ft.
Trunk (boot) space – maximum 1664 l
58.76 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Dimensions
Length 4470 mm
175.98 in.
Width 1790 mm
70.47 in.
Height 1525 mm
60.04 in.
Wheelbase 2650 mm
104.33 in.
Minimum turning circle (turning diameter) 10.34 m
33.92 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/65 R15; 195/65 R15; 205/55 R16
Wheel rims size 15; 16
