Specifications: Kia Cee’d SW II 1.6 CRDi 16V (128 Hp) ISG 2012, 2013, 2014, 2015

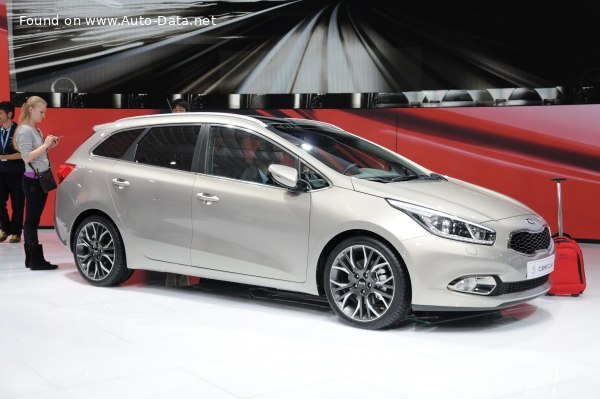

2012 Kia Cee'd SW II - Photo 1

Kia Cee’d SW II 1.6 CRDi 16V (128 Hp) ISG – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d SW II
Modification (Engine) 1.6 CRDi 16V (128 Hp) ISG
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.0-5.3 l/100 km
47.04 – 44.38 US mpg
56.5 – 53.3 UK mpg
20 – 18.87 km/l
Fuel consumption (economy) – extra urban 3.8-4.0 l/100 km
61.9 – 58.8 US mpg
74.34 – 70.62 UK mpg
26.32 – 25 km/l
Fuel consumption (economy) – combined 4.2-4.4 l/100 km
56 – 53.46 US mpg
67.26 – 64.2 UK mpg
23.81 – 22.73 km/l
CO2 emissions 110-116 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 193 km/h
119.92 mph
Emission standard Euro 5
Weight-to-power ratio 10.5 kg/Hp, 95.2 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 193.3 Nm/tonne
Engine specs
Power 128 Hp @ 4000 rpm.
Power per litre 80.9 Hp/l
Torque 260 Nm @ 1900-2750 rpm.
191.77 lb.-ft. @ 1900-2750 rpm.
Engine layout Front, Transverse
Engine Model/Code D4FB
Engine displacement 1582 cm3
96.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77.2 mm
3.04 in.
Piston Stroke 84.5 mm
3.33 in.
Compression ratio 17.3:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.9 l
7.29 US qt | 6.07 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1345-1472 kg
2965.22 – 3245.2 lbs.
Max. weight 1920 kg
4232.88 lbs.
Max load 448-575 kg
987.67 – 1267.66 lbs.
Trunk (boot) space – minimum 528 l
18.65 cu. ft.
Trunk (boot) space – maximum 1642 l
57.99 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Dimensions
Length 4505 mm
177.36 in.
Width 1780 mm
70.08 in.
Width including mirrors 2045 mm
80.51 in.
Height 1485 mm
58.46 in.
Wheelbase 2650 mm
104.33 in.
Front track 1549-1553 mm
60.98 – 61.14 in.
Rear (Back) track 1557-1561 mm
61.3 – 61.46 in.
Front overhang 900 mm
35.43 in.
Rear overhang 955 mm
37.6 in.
Minimum turning circle (turning diameter) 10.3 m
33.79 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 280-300 mm
Rear brakes Disc, 262-284 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16; 225/45 R17
Wheel rims size 6; 5J x 16; 7J x 17
