Specifications: Kia Cee’d SW II (facelift 2015) 1.6 CRDI (136 Hp) ISG DCT 2015, 2016, 2017, 2018

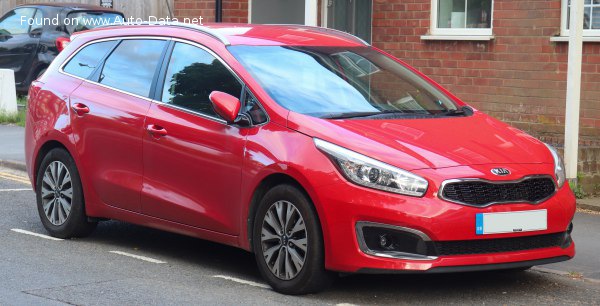

2015 Kia Cee'd SW II (facelift 2015) - Photo 1

Kia Cee’d SW II (facelift 2015) 1.6 CRDI (136 Hp) ISG DCT – Full specifications
General information
Brand Kia
Model Cee’d
Generation Cee’d SW II (facelift 2015)
Modification (Engine) 1.6 CRDI (136 Hp) ISG DCT
Start of production June, 2015 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.31 US mpg
72.43 UK mpg
25.64 km/l
Fuel consumption (economy) – combined 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
CO2 emissions 109 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.9 sec
Acceleration 0 – 62 mph 10.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.4 sec
Maximum speed 197 km/h
122.41 mph
Emission standard Euro 6
Weight-to-power ratio 9.9 kg/Hp, 101.4 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 223.7 Nm/tonne
Engine specs
Power 136 Hp @ 4000 rpm.
Power per litre 86 Hp/l
Torque 300 Nm @ 1750-2500 rpm.
221.27 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code D4FB
Engine displacement 1582 cm3
96.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77.2 mm
3.04 in.
Piston Stroke 84.5 mm
3.33 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1341-1475 kg
2956.4 – 3251.82 lbs.
Max. weight 1940 kg
4276.97 lbs.
Max load 465-599 kg
1025.15 – 1320.57 lbs.
Trunk (boot) space – minimum 528 l
18.65 cu. ft.
Trunk (boot) space – maximum 1642 l
57.99 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 650 kg
1433 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4505 mm
177.36 in.
Width 1780 mm
70.08 in.
Width including mirrors 2035 mm
80.12 in.
Height 1485 mm
58.46 in.
Wheelbase 2650 mm
104.33 in.
Front track 1549-1555 mm
60.98 – 61.22 in.
Rear (Back) track 1557-1563 mm
61.3 – 61.54 in.
Front overhang 900 mm
35.43 in.
Rear overhang 955 mm
37.6 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DCT
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 280-300 mm
Rear brakes Disc, 262-284 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16 91H; 225/45 R17 91V
Wheel rims size 6; 5J x 16 ET50; 7; 0J x 17 ET53
