Specifications: Kia Cerato III Koup 2.0 GDI (175 Hp) 2012, 2013, 2014, 2015, 2016

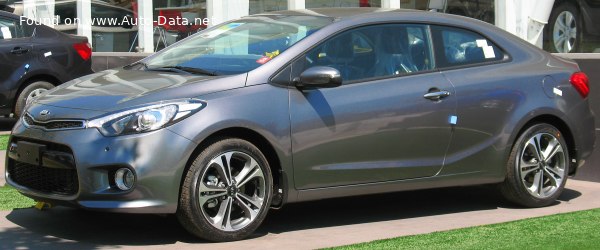

2013 Kia Cerato III Koup - Photo 1

Kia Cerato III Koup 2.0 GDI (175 Hp) – Full specifications
General information
Brand Kia
Model Cerato
Generation Cerato III Koup
Modification (Engine) 2.0 GDI (175 Hp)
Start of production 2012 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 5
Doors 2
Performance specs
Fuel consumption (economy) – urban 10 l/100 km
23.52 US mpg
28.25 UK mpg
10 km/l
Fuel consumption (economy) – extra urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – combined 7.3 l/100 km
32.22 US mpg
38.7 UK mpg
13.7 km/l
CO2 emissions 175 g/km
Fuel Type Petrol (Gasoline)
Emission standard Euro IV
Weight-to-power ratio 7.3 kg/Hp, 136.3 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 162.8 Nm/tonne
Engine specs
Power 175 Hp @ 6500 rpm.
Power per litre 87.5 Hp/l
Torque 209 Nm @ 4700 rpm.
154.15 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code Nu/G4NC
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-CVVT
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.4 l
6.76 US qt | 5.63 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1284-1314 kg
2830.74 – 2896.87 lbs.
Max. weight 1760 kg
3880.14 lbs.
Max load 446-476 kg
983.26 – 1049.4 lbs.
Trunk (boot) space – minimum 433 l
15.29 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4530 mm
178.35 in.
Width 1780 mm
70.08 in.
Height 1410 mm
55.51 in.
Wheelbase 2700 mm
106.3 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/45 R17
Wheel rims size 17
