Specifications: Kia Cerato III Sedan 1.8 MPI (150 Hp) 2012, 2013, 2014, 2015, 2016

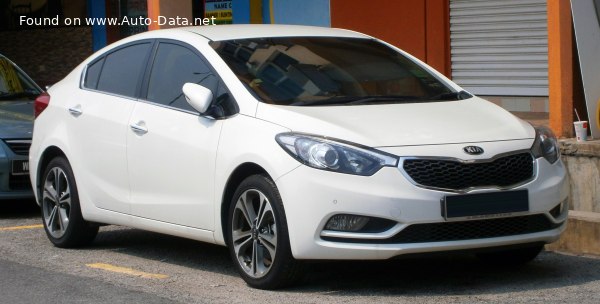

2013 Kia Cerato III Sedan - Photo 1

Kia Cerato III Sedan 1.8 MPI (150 Hp) – Full specifications
General information
Brand Kia
Model Cerato
Generation Cerato III Sedan
Modification (Engine) 1.8 MPI (150 Hp)
Start of production 2012 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 9.1 l/100 km
25.85 US mpg
31.04 UK mpg
10.99 km/l
Fuel consumption (economy) – extra urban 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
CO2 emissions 158 g/km
Fuel Type Petrol (Gasoline)
Emission standard Euro IV
Weight-to-power ratio 8.4 kg/Hp, 118.4 Hp/tonne
Weight-to-torque ratio 7.1 kg/Nm, 140.5 Nm/tonne
Engine specs
Power 150 Hp @ 6500 rpm.
Power per litre 83.5 Hp/l
Torque 178 Nm @ 4700 rpm.
131.29 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code Nu/G4NB
Engine displacement 1797 cm3
109.66 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 87.2 mm
3.43 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Valvetrain DOHC, D-CVVT
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1267-1308 kg
2793.26 – 2883.65 lbs.
Max. weight 1770 kg
3902.18 lbs.
Max load 462-503 kg
1018.54 – 1108.93 lbs.
Trunk (boot) space – minimum 482 l
17.02 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 610 kg
1344.82 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4560 mm
179.53 in.
Width 1780 mm
70.08 in.
Height 1435 mm
56.5 in.
Wheelbase 2700 mm
106.3 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 16
