Specifications: Kia Clarus (GC) 1.8i 16V (116 Hp) Automatic 1998, 1999, 2000, 2001

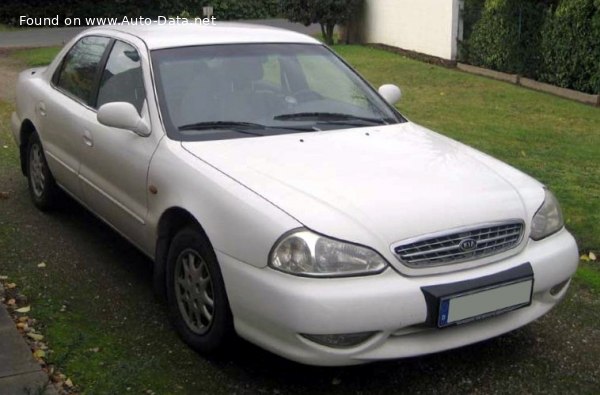

1998 Kia Clarus (GC) - Photo 1

Kia Clarus (GC) 1.8i 16V (116 Hp) Automatic – Full specifications
General information
Brand Kia
Model Clarus
Generation Clarus (GC)
Modification (Engine) 1.8i 16V (116 Hp) Automatic
Start of production 1998 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 15 l/100 km
15.68 US mpg
18.83 UK mpg
6.67 km/l
Fuel consumption (economy) – extra urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – combined 11 l/100 km
21.38 US mpg
25.68 UK mpg
9.09 km/l
CO2 emissions 253 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.9 sec
Acceleration 0 – 62 mph 13.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.2 sec
Maximum speed 178 km/h
110.6 mph
Emission standard Euro 2
Weight-to-power ratio 10.8 kg/Hp, 92.8 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 121.6 Nm/tonne
Engine specs
Power 116 Hp @ 5750 rpm.
Power per litre 64.7 Hp/l
Torque 152 Nm @ 4500 rpm.
112.11 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code T8
Engine displacement 1793 cm3
109.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 87 mm
3.43 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1250 kg
2755.78 lbs.
Trunk (boot) space – minimum 444 l
15.68 cu. ft.
Trunk (boot) space – maximum 784 l
27.69 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4731 mm
186.26 in.
Width 1770 mm
69.69 in.
Height 1420 mm
55.91 in.
Wheelbase 2659 mm
104.69 in.
Front track 1500 mm
59.06 in.
Rear (Back) track 1500 mm
59.06 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R14
Wheel rims size 14
