Specifications: Kia EV6 Long Range 77.4 kWh (325 Hp) AWD 2021, 2022, 2023, 2024

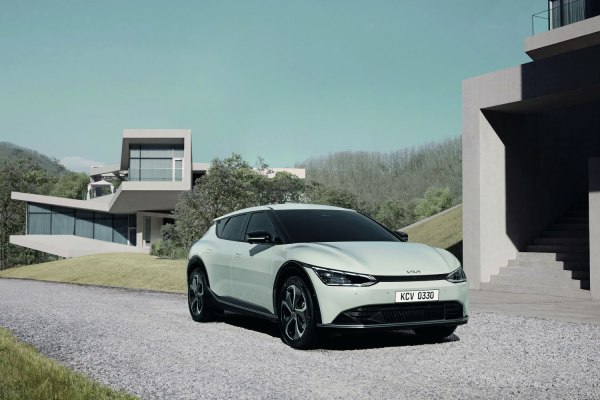

2021 Kia EV6 - Photo 1

Kia EV6 Long Range 77.4 kWh (325 Hp) AWD – Full specifications
General information
Brand Kia
Model EV6
Generation EV6
Modification (Engine) Long Range 77.4 kWh (325 Hp) AWD
Start of production March, 2021 year
End of production May, 2024 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 5.2 sec
Acceleration 0 – 62 mph 5.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.9 sec
Maximum speed 185 km/h
114.95 mph
Weight-to-power ratio 6.2 kg/Hp, 161.3 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 300.2 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 77.4 kWh
Net (usable) battery capacity 72.5 kWh
Battery technology Lithium-polymer (LiPo)
Battery weight 477 kg
1051.6 lbs.
Battery location Below the floor
All-electric range 506 km
314.41 mi
Average Energy consumption 17.2 kWh/100 km

27.68 kWh/100 mi
122 MPGe
5.8 km/kWh
3.6 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor location Front axle, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 325 Hp
System torque 605 Nm
446.23 lb.-ft.

Space, Volume and weights
Kerb Weight 2015-2105 kg
4442.31 – 4640.73 lbs.
Max. weight 2530 kg
5577.7 lbs.
Max load 425-515 kg
936.96 – 1135.38 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1300 l
45.91 cu. ft.
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4680 mm
184.25 in.
Width 1880 mm
74.02 in.
Height 1550 mm
61.02 in.
Wheelbase 2900 mm
114.17 in.
Front track 1628 mm
64.09 in.
Rear (Back) track 1637 mm
64.45 in.
Front overhang 830 mm
32.68 in.
Rear overhang 950 mm
37.4 in.
Ride height (ground clearance) 160 mm
6.3 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 345 mm
Rear brakes Ventilated discs, 345 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19
Wheel rims size 7.5J x 19
