Specifications: Kia EV9 99.8 kWh (380 Hp) AWD Electric 2023, 2024, 2025

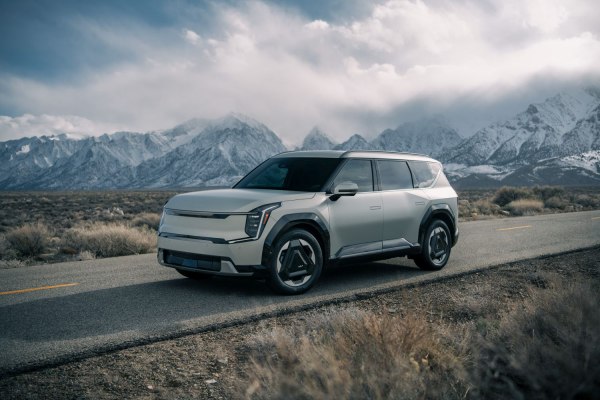

2024 Kia EV9 - Photo 1

Kia EV9 99.8 kWh (380 Hp) AWD Electric – Full specifications
General information
Brand Kia
Model EV9
Generation EV9
Modification (Engine) 99.8 kWh (380 Hp) AWD Electric
Start of production March, 2023 year
Powertrain Architecture BEV (Electric Vehicle)
Body type SUV
Seats 6-7
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 60 mph 5 sec
Maximum speed 200 km/h
124.27 mph
100 km/h – 0 39 m
Weight-to-power ratio 6.8 kg/Hp, 147.3 Hp/tonne
Weight-to-torque ratio 3.7 kg/Nm, 271.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 99.8 kWh
Battery voltage 552 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 566 kg
1247.82 lbs.
Battery location Below the floor
All-electric range (EPA) 434.5-450.6 km
269.99 – 279.99 mi
Average Energy consumption (EPA) 26.2-25.2 kWh/100 km

42.16 – 40.56 kWh/100 mi
80 – 83 MPGe
3.8 – 4 km/kWh
2.4 – 2.5 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 190 Hp @ 4000-7800 rpm.
Electric motor Torque 350 Nm @ 0-3800 rpm.

258.15 lb.-ft. @ 0-3800 rpm.
Electric motor location Front axle, Transverse
Electric motor type Synchronous
Electric motor 2
Electric motor power 190 Hp @ 4000-7800 rpm.
Electric motor Torque 350 Nm @ 0-3800 rpm.

258.15 lb.-ft. @ 0-3800 rpm.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 380 Hp
System torque 700 Nm
516.29 lb.-ft.

Space, Volume and weights
Kerb Weight 2580-2670 kg
5687.93 – 5886.34 lbs.
Max. weight 3220 kg
7098.88 lbs.
Max load 550-640 kg
1212.54 – 1410.96 lbs.
Trunk (boot) space – minimum 572 l
20.2 cu. ft.
Trunk (boot) space – maximum 2313 l
81.68 cu. ft.
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5009 mm
197.2 in.
Width 1979 mm
77.91 in.
Height 1755-1781 mm
69.09 – 70.12 in.
Wheelbase 3099 mm
122.01 in.
Front track 1692-1702 mm
66.61 – 67.01 in.
Rear (Back) track 1704-1715 mm
67.09 – 67.52 in.
Front overhang 871 mm
34.29 in.
Rear overhang 1039 mm
40.91 in.
Ride height (ground clearance) 198 mm
7.8 in.
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Approach angle 20°
Departure angle 22.8°
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels, one electric motor drives the rear wheels.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Spring Strut, Independent type McPherson
Rear suspension Spring Strut, Independent multi-link suspension
Front brakes Ventilated discs, 360.68 mm
Rear brakes Disc, 345.44 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 19; 20; 21
