Specifications: Kia Forte I Koup 2.4 (165 Hp) Automatic 5-speed 2009, 2010

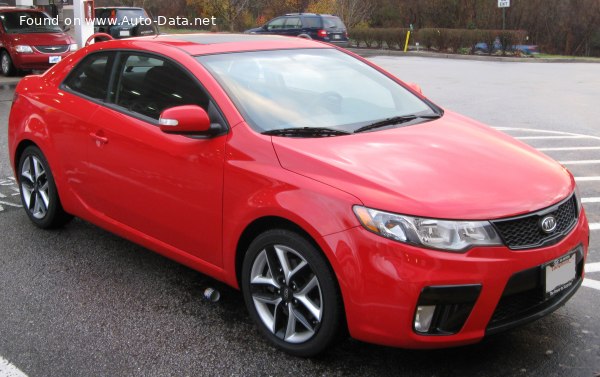

2010 Kia Forte I Koup - Photo 1

Kia Forte I Koup 2.4 (165 Hp) Automatic 5-speed – Full specifications
General information
Brand Kia
Model Forte
Generation Forte I Koup
Modification (Engine) 2.4 (165 Hp) Automatic 5-speed
Start of production 2009 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 5
Doors 2
Performance specs
Fuel consumption (economy) – urban (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – extra urban (EPA) 7.6 l/100 km
30.95 US mpg
37.17 UK mpg
13.16 km/l
Fuel Type Petrol (Gasoline)
Emission standard SULEV
Weight-to-power ratio 7.9 kg/Hp, 126.5 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 167.2 Nm/tonne
Engine specs
Power 165 Hp @ 6000 rpm.
Power per litre 69.9 Hp/l
Torque 218 Nm @ 4000 rpm.
160.79 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Theta II / G4KE
Engine displacement 2359 cm3
143.96 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 88 mm
3.46 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, CVVT
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1304 kg
2874.83 lbs.
Trunk (boot) space – minimum 357 l
12.61 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4480 mm
176.38 in.
Width 1765 mm
69.49 in.
Height 1400 mm
55.12 in.
Wheelbase 2650 mm
104.33 in.
Front track 1542 mm
60.71 in.
Rear (Back) track 1546 mm
60.87 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Coil spring, Torsion
Front brakes Ventilated discs, 300 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/45 R17
Wheel rims size 7J x 17
