Specifications: Kia Forte II (YD) 2.0 GDI (173 Hp) Automatic 2013, 2014, 2015, 2016

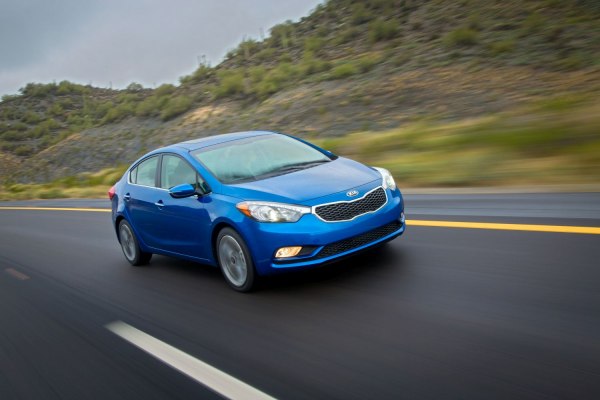

2014 Kia Forte II (YD) - Photo 1

Kia Forte II (YD) 2.0 GDI (173 Hp) Automatic – Full specifications
General information
Brand Kia
Model Forte
Generation Forte II (YD)
Modification (Engine) 2.0 GDI (173 Hp) Automatic
Start of production 2013 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – extra urban (EPA) 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel consumption (economy) – combined (EPA) 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV-II
Weight-to-power ratio 7.5 kg/Hp, 133.5 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.3 Nm/tonne
Engine specs
Power 173 Hp @ 6500 rpm.
Power per litre 86.5 Hp/l
Torque 209 Nm @ 4700 rpm.
154.15 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code Nu / G4NC
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-CVVT
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt

Space, Volume and weights
Kerb Weight 1296-1374 kg
2857.19 – 3029.15 lbs.
Max. weight 1770 kg
3902.18 lbs.
Max load 396-474 kg
873.03 – 1044.99 lbs.
Trunk (boot) space – minimum 421 l
14.87 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4560 mm
179.53 in.
Width 1780 mm
70.08 in.
Height 1430 mm
56.3 in.
Wheelbase 2700 mm
106.3 in.
Front track 1553-1557 mm
61.14 – 61.3 in.
Rear (Back) track 1566-1570 mm
61.65 – 61.81 in.
Front overhang 880 mm
34.65 in.
Rear overhang 980 mm
38.58 in.
Ride height (ground clearance) 135 mm
5.31 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 15.2°
Departure angle 20.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 215/45 R17
Wheel rims size 6.5J x 16; 7J x 17
