Specifications: Kia Forte5 II (YD) 2.0 GDI (166 Hp) Automatic 2013, 2014, 2015, 2016

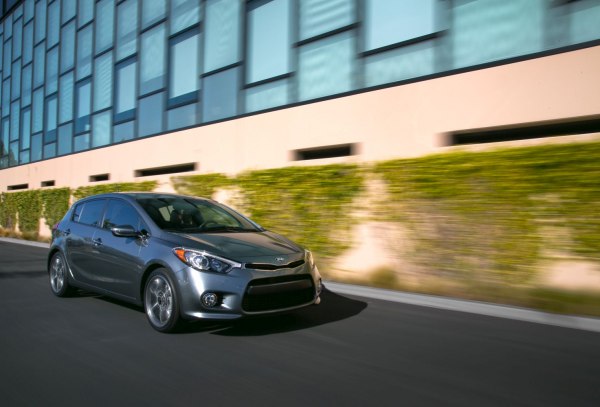

2014 Kia Forte5 II (YD) - Photo 1

Kia Forte5 II (YD) 2.0 GDI (166 Hp) Automatic – Full specifications
General information
Brand Kia
Model Forte
Generation Forte5 II (YD)
Modification (Engine) 2.0 GDI (166 Hp) Automatic
Start of production 2013 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption (economy) – extra urban (EPA) 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
Fuel Type Petrol (Gasoline)
Emission standard SULEV
Weight-to-power ratio 8 kg/Hp, 125.7 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.2 Nm/tonne
Engine specs
Power 166 Hp @ 6500 rpm.
Power per litre 83 Hp/l
Torque 201 Nm @ 4700 rpm.
148.25 lb.-ft. @ 4700 rpm.
Engine layout Front, Transverse
Engine Model/Code Nu / G4NC
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 11.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-CVVT
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt

Space, Volume and weights
Kerb Weight 1321-1381 kg
2912.31 – 3044.58 lbs.
Max. weight 1800 kg
3968.32 lbs.
Max load 419-479 kg
923.74 – 1056.01 lbs.
Trunk (boot) space – minimum 657 l
23.2 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4350 mm
171.26 in.
Width 1780 mm
70.08 in.
Height 1450 mm
57.09 in.
Wheelbase 2700 mm
106.3 in.
Front track 1553-1557 mm
61.14 – 61.3 in.
Rear (Back) track 1566-1570 mm
61.65 – 61.81 in.
Front overhang 880 mm
34.65 in.
Rear overhang 770 mm
30.31 in.
Ride height (ground clearance) 140 mm
5.51 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 15.2°
Departure angle 25.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 215/45 R17
Wheel rims size 6.5J x 16; 7J x 17
