Specifications: Kia Magentis II 2.0 CRDi (140 Hp) 2005, 2006, 2007, 2008

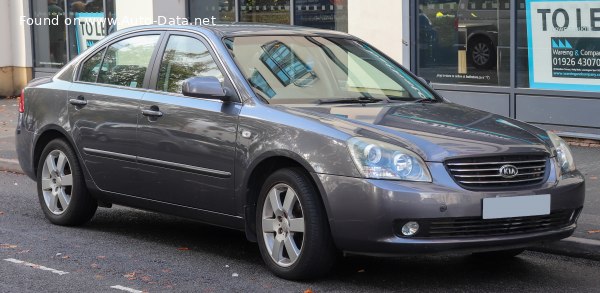

2005 Kia Magentis II - Photo 1

Kia Magentis II 2.0 CRDi (140 Hp) – Full specifications
General information
Brand Kia
Model Magentis
Generation Magentis II
Modification (Engine) 2.0 CRDi (140 Hp)
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6 l/100 km
39.2 US mpg
47.08 UK mpg
16.67 km/l
CO2 emissions 162 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 200 km/h
124.27 mph
Emission standard Euro 4
Weight-to-power ratio 11.4 kg/Hp, 87.5 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 190.6 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 70.3 Hp/l
Torque 305 Nm @ 1800-2500 rpm.
224.96 lb.-ft. @ 1800-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code D4EA
Engine displacement 1991 cm3
121.5 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 17.3:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.9 l
6.23 US qt | 5.19 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt

Space, Volume and weights
Kerb Weight 1600 kg
3527.4 lbs.
Max. weight 2045 kg
4508.45 lbs.
Max load 445 kg
981.06 lbs.
Trunk (boot) space – minimum 496 l
17.52 cu. ft.
Trunk (boot) space – maximum 816 l
28.82 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4735 mm
186.42 in.
Width 1805 mm
71.06 in.
Height 1480 mm
58.27 in.
Wheelbase 2720 mm
107.09 in.
Front track 1558 mm
61.34 in.
Rear (Back) track 1552 mm
61.1 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R16
Wheel rims size 6.5J x 16
