Specifications: Kia Niro I 1.6 GDI (141 Hp) Plug-in Hybrid DCT 2017, 2018, 2019

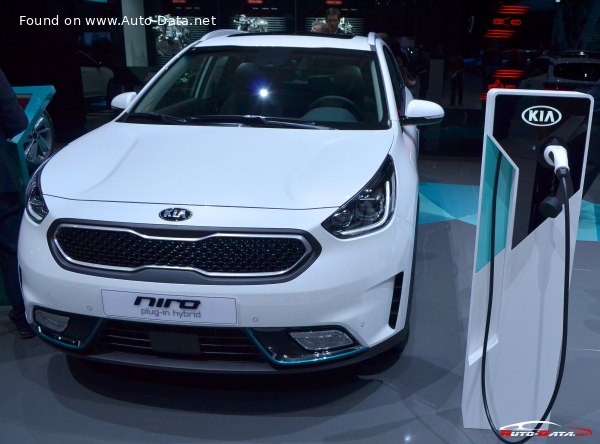

2017 Kia Niro I - Photo 1

Kia Niro I 1.6 GDI (141 Hp) Plug-in Hybrid DCT – Full specifications
General information
Brand Kia
Model Niro
Generation Niro I
Modification (Engine) 1.6 GDI (141 Hp) Plug-in Hybrid DCT
Start of production August, 2017 year
End of production 2019 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined (NEDC) 1.3 l/100 km
180.93 US mpg
217.29 UK mpg
76.92 km/l
CO2 emissions (NEDC) 29 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 10.8 sec
Acceleration 0 – 62 mph 10.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.3 sec
Maximum speed 172 km/h
106.88 mph
Emission standard Euro 6
Weight-to-power ratio 10.8 kg/Hp, 92.8 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 174.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 8.9 kWh
Net (usable) battery capacity 7.1 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 117 kg
257.94 lbs.
Battery location Under the rear seats
Under the trunk
All-electric range (NEDC) 58 km
36.04 mi
Average Energy consumption (NEDC) 9.8 kWh/100 km

15.77 kWh/100 mi
214 MPGe
10.2 km/kWh
6.3 mi/kWh
Max speed (electric) 120 km/h

74.56 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 61 Hp @ 1798-2500 rpm.
Electric motor Torque 170 Nm @ 0-1798 rpm.

125.39 lb.-ft. @ 0-1798 rpm.
Electric motor location Between the combustion engine and the transmission
System power 141 Hp @ 5700 rpm.
System torque 265 Nm @ 1000-2400 rpm.
195.45 lb.-ft. @ 1000-2400 rpm.
Internal combustion engine specs
Power 105 Hp @ 5700 rpm.
Power per litre 66.5 Hp/l
Torque 147 Nm @ 4000 rpm.
108.42 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G4LE
Engine displacement 1580 cm3
96.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1519-1576 kg
3348.82 – 3474.49 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 424-481 kg
934.76 – 1060.42 lbs.
Trunk (boot) space – minimum 324 l
11.44 cu. ft.
Trunk (boot) space – maximum 1322 l
46.69 cu. ft.
Fuel tank capacity 43 l
11.36 US gal | 9.46 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4355 mm
171.46 in.
Width 1805 mm
71.06 in.
Width including mirrors 2035 mm
80.12 in.
Height 1545 mm
60.83 in.
Wheelbase 2700 mm
106.3 in.
Front track 1555-1565 mm
61.22 – 61.61 in.
Rear (Back) track 1569-1579 mm
61.77 – 62.17 in.
Front overhang 870 mm
34.25 in.
Rear overhang 785 mm
30.91 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DCT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16; 225/45 R18
Wheel rims size 6.5J x 16; 7.5J x 18
