Specifications: Kia Niro I (facelift 2019) 1.6 GDI (141 Hp) Hybrid DCT 2019, 2020, 2021, 2022

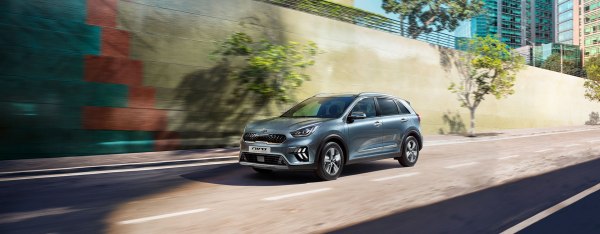

2019 Kia Niro I (facelift 2019) - Photo 1

Kia Niro I (facelift 2019) 1.6 GDI (141 Hp) Hybrid DCT – Full specifications
General information
Brand Kia
Model Niro
Generation Niro I (facelift 2019)
Modification (Engine) 1.6 GDI (141 Hp) Hybrid DCT
Start of production July, 2019 year
End of production June, 2022 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 4.4-5.2 l/100 km
53.46 – 45.23 US mpg
64.2 – 54.32 UK mpg
22.73 – 19.23 km/l
CO2 emissions (WLTP) 100-119 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 3.4-3.8 l/100 km
69.18 – 61.9 US mpg
83.08 – 74.34 UK mpg
29.41 – 26.32 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 3.6-4.5 l/100 km
65.34 – 52.27 US mpg
78.47 – 62.77 UK mpg
27.78 – 22.22 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 3.4-4.2 l/100 km
69.18 – 56 US mpg
83.08 – 67.26 UK mpg
29.41 – 23.81 km/l
CO2 emissions (NEDC, WLTP equivalent) 79-97 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 162 km/h
100.66 mph
Emission standard Euro 6d
Weight-to-power ratio 10 kg/Hp, 99.6 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 187.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.56 kWh
Max speed (electric) 120 km/h

74.56 mph
Electric motor 1
Electric motor power 44 Hp @ 1798-2500 rpm.
Electric motor Torque 170 Nm @ 0-1798 rpm.

125.39 lb.-ft. @ 0-1798 rpm.
Electric motor location Between the combustion engine and the transmission
System power 141 Hp @ 5700 rpm.
System torque 265 Nm @ 1000-2400 rpm.
195.45 lb.-ft. @ 1000-2400 rpm.
Internal combustion engine specs
Power 105 Hp @ 5700 rpm.
Power per litre 66.5 Hp/l
Torque 147 Nm @ 4000 rpm.
108.42 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G4LE
Engine displacement 1580 cm3
96.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual CVVT
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1415-1510 kg
3119.54 – 3328.98 lbs.
Max. weight 1930 kg
4254.92 lbs.
Max load 420-515 kg
925.94 – 1135.38 lbs.
Trunk (boot) space – minimum 382 l
13.49 cu. ft.
Trunk (boot) space – maximum 1434 l
50.64 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4355 mm
171.46 in.
Width 1805 mm
71.06 in.
Height 1545 mm
60.83 in.
Wheelbase 2700 mm
106.3 in.
Front track 1555-1565 mm
61.22 – 61.61 in.
Rear (Back) track 1569-1579 mm
61.77 – 62.17 in.
Front overhang 870 mm
34.25 in.
Rear overhang 785 mm
30.91 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DCT
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16 92H; 225/45 R18 91W
Wheel rims size 6.5J x 16 ET45; 7.5J x 18 ET50
