Specifications: Kia Niro II 1.6 GDI (183 Hp) Plug-in Hybrid DCT 2022, 2023, 2024

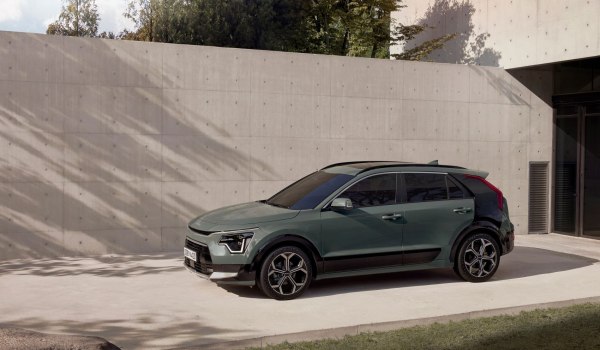

2023 Kia Niro II - Photo 1

Kia Niro II 1.6 GDI (183 Hp) Plug-in Hybrid DCT – Full specifications
General information
Brand Kia
Model Niro
Generation Niro II
Modification (Engine) 1.6 GDI (183 Hp) Plug-in Hybrid DCT
Start of production June, 2022 year
End of production April, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 1.3-1.6 l/100 km
180.93 – 147.01 US mpg
217.29 – 176.55 UK mpg
76.92 – 62.5 km/l
CO2 emissions 29-36 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 168 km/h
104.39 mph
Emission standard Euro 6d
Weight-to-power ratio 8.3 kg/Hp, 120.5 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 174.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 11.1 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 111 kg
244.71 lbs.
Battery location Under the rear seats
Under the trunk
All-electric range 59-65 km
36.66 – 40.39 mi
Average Energy consumption 10.5-13 kWh/100 km

16.9 – 20.92 kWh/100 mi
199 – 161 MPGe
9.5 – 7.7 km/kWh
5.9 – 4.8 mi/kWh
Max speed (electric) 134 km/h

83.26 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 84 Hp @ 1798-2500 rpm.
Electric motor Torque 203 Nm @ 0-1798 rpm.

149.73 lb.-ft. @ 0-1798 rpm.
Electric motor location Between the combustion engine and the transmission
System power 183 Hp @ 5700 rpm.
System torque 265 Nm @ 1000-2400 rpm.
195.45 lb.-ft. @ 1000-2400 rpm.
Internal combustion engine specs
Power 105 Hp @ 5700 rpm.
Power per litre 66.5 Hp/l
Torque 144 Nm @ 4000 rpm.
106.21 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Smartstream / G4LE
Engine displacement 1580 cm3
96.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual CVVT
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1519-1610 kg
3348.82 – 3549.44 lbs.
Max. weight 2060 kg
4541.52 lbs.
Max load 450-541 kg
992.08 – 1192.7 lbs.
Trunk (boot) space – minimum 348 l
12.29 cu. ft.
Trunk (boot) space – maximum 1342 l
47.39 cu. ft.
Fuel tank capacity 37 l
9.77 US gal | 8.14 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4420 mm
174.02 in.
Width 1825 mm
71.85 in.
Height 1545 mm
60.83 in.
Wheelbase 2720 mm
107.09 in.
Front track 1573-1585 mm
61.93 – 62.4 in.
Rear (Back) track 1585-1596 mm
62.4 – 62.83 in.
Front overhang 895 mm
35.24 in.
Rear overhang 805 mm
31.69 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drag coefficient (Cd) 0.285
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DCT
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 6.5J x 16 ET46; 7.5J x 18 ET52
