Specifications: Kia Optima II 2.0 CVVT (144 Hp) 2005, 2006, 2007, 2008

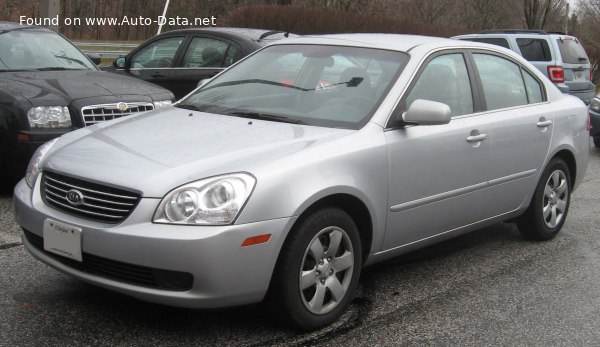

2005 Kia Optima II - Photo 1

Kia Optima II 2.0 CVVT (144 Hp) – Full specifications
General information
Brand Kia
Model Optima
Generation Optima II
Modification (Engine) 2.0 CVVT (144 Hp)
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.52 km/l
Fuel consumption (economy) – extra urban 6.1 l/100 km
38.56 US mpg
46.31 UK mpg
16.39 km/l
Fuel consumption (economy) – combined 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
CO2 emissions 185 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 208 km/h
129.25 mph
Emission standard Euro 4
Weight-to-power ratio 9.8 kg/Hp, 102.3 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.5 Nm/tonne
Engine specs
Power 144 Hp @ 6200 rpm.
Power per litre 72.1 Hp/l
Torque 188 Nm @ 4250 rpm.
138.66 lb.-ft. @ 4250 rpm.
Engine layout Front, Transverse
Engine Model/Code Theta II / G4KA
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.6 l
6.97 US qt | 5.81 UK qt

Space, Volume and weights
Kerb Weight 1408 kg
3104.11 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 552 kg
1216.95 lbs.
Trunk (boot) space – minimum 496 l
17.52 cu. ft.
Trunk (boot) space – maximum 816 l
28.82 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 700 kg
1543.24 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4735 mm
186.42 in.
Width 1805 mm
71.06 in.
Height 1480 mm
58.27 in.
Wheelbase 2720 mm
107.09 in.
Front track 1563 mm
61.54 in.
Rear (Back) track 1552 mm
61.1 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R16
Wheel rims size 6.5J x 16
