Specifications: Kia Optima III 2.4 GDI (194 Hp) Automatic 2010, 2011, 2012, 2013

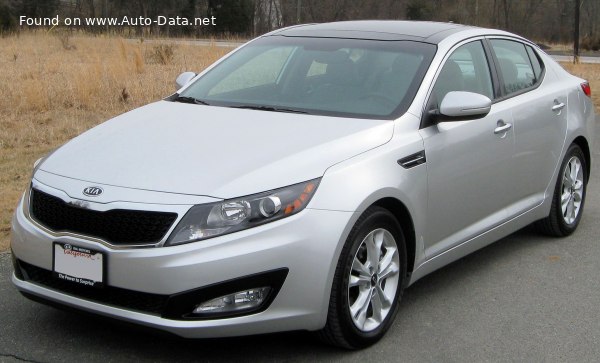

2010 Kia Optima III - Photo 1

Kia Optima III 2.4 GDI (194 Hp) Automatic – Full specifications
General information
Brand Kia
Model Optima
Generation Optima III
Modification (Engine) 2.4 GDI (194 Hp) Automatic
Start of production 2010 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.5 kg/Hp, 132.7 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 167.6 Nm/tonne
Engine specs
Power 194 Hp @ 6300 rpm.
Power per litre 82.2 Hp/l
Torque 245 Nm @ 4250 rpm.
180.7 lb.-ft. @ 4250 rpm.
Engine layout Front, Transverse
Engine Model/Code G4KJ
Engine displacement 2359 cm3
143.96 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 88 mm
3.46 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 11.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-CVVT
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1462 kg
3223.16 lbs.
Max. weight 2030 kg
4475.38 lbs.
Max load 568 kg
1252.23 lbs.
Trunk (boot) space – minimum 436 l
15.4 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4845 mm
190.75 in.
Width 1830 mm
72.05 in.
Height 1455 mm
57.28 in.
Wheelbase 2795 mm
110.04 in.
Front track 1595 mm
62.8 in.
Rear (Back) track 1595 mm
62.8 in.
Front overhang 965 mm
37.99 in.
Rear overhang 1085 mm
42.72 in.
Drag coefficient (Cd) 0.285
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/55 R17
Wheel rims size 6.5J x 17
