Specifications: Kia Optima IV Sportswagon 2.0 GDI (205 Hp) Plug-in Hybrid Automatic 2017, 2018

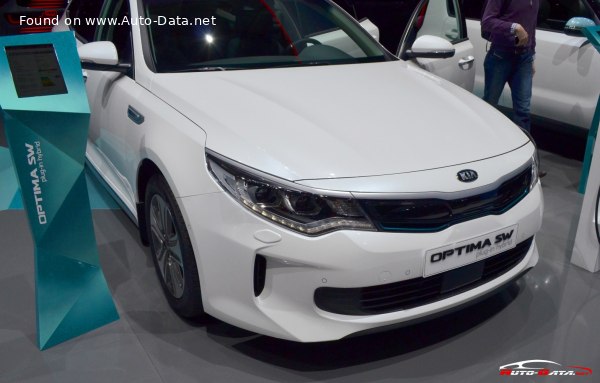

2015 Kia Optima IV Sportswagon - Photo 1

Kia Optima IV Sportswagon 2.0 GDI (205 Hp) Plug-in Hybrid Automatic – Full specifications
General information
Brand Kia
Model Optima
Generation Optima IV Sportswagon
Modification (Engine) 2.0 GDI (205 Hp) Plug-in Hybrid Automatic
Start of production 2017 year
End of production 2018 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined (NEDC) 1.4 l/100 km
168.01 US mpg
201.77 UK mpg
71.43 km/l
CO2 emissions (NEDC) 33 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 9.7 sec
Acceleration 0 – 62 mph 9.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.2 sec
Maximum speed 192 km/h
119.3 mph
Emission standard Euro 6
Weight-to-power ratio 8.5 kg/Hp, 117.8 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 215.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 11.3 kWh
Net (usable) battery capacity 9 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 131 kg
288.81 lbs.
Battery location Under the trunk
All-electric range (NEDC) 62 km
38.53 mi
Average Energy consumption (NEDC) 12.3 kWh/100 km

19.79 kWh/100 mi
170 MPGe
8.1 km/kWh
5.1 mi/kWh
Max speed (electric) 120 km/h

74.56 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 68 Hp @ 2330-3300 rpm.
Electric motor Torque 205 Nm @ 0-2330 rpm.

151.2 lb.-ft. @ 0-2330 rpm.
Electric motor location Between the combustion engine and the transmission
System power 205 Hp @ 6000 rpm.
System torque 375 Nm @ 2300 rpm.
276.59 lb.-ft. @ 2300 rpm.
Internal combustion engine specs
Power 156 Hp @ 6000 rpm.
Power per litre 78 Hp/l
Torque 189 Nm @ 5000 rpm.
139.4 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code G4NG
Engine displacement 1999 cm3
121.99 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 97 mm
3.82 in.
Compression ratio 13.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual CVVT
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1740-1805 kg
3836.04 – 3979.34 lbs.
Max. weight 2270 kg
5004.49 lbs.
Max load 465-530 kg
1025.15 – 1168.45 lbs.
Trunk (boot) space – minimum 440 l
15.54 cu. ft.
Trunk (boot) space – maximum 1574 l
55.59 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4855 mm
191.14 in.
Width 1860 mm
73.23 in.
Height 1470 mm
57.87 in.
Wheelbase 2805 mm
110.43 in.
Front track 1602 mm
63.07 in.
Rear (Back) track 1609 mm
63.35 in.
Front overhang 965 mm
37.99 in.
Rear overhang 1085 mm
42.72 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 300 mm
Rear brakes Disc, 300 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17
Wheel rims size 7J x 17
