Specifications: Kia Picanto III (facelift 2020) 1.2 (84 Hp) 2020, 2021, 2022, 2023

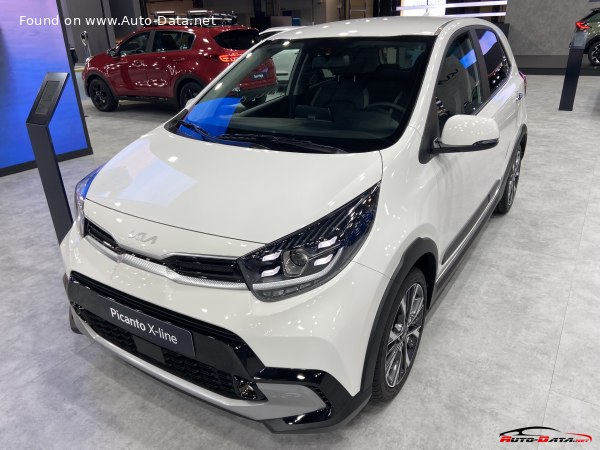

2021 Kia Picanto III (facelift 2020) - Photo 1

Kia Picanto III (facelift 2020) 1.2 (84 Hp) – Full specifications
General information
Brand Kia
Model Picanto
Generation Picanto III (facelift 2020)
Modification (Engine) 1.2 (84 Hp)
Start of production July, 2020 year
End of production July, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
CO2 emissions (WLTP) 133 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 4.8 l/100 km
49 US mpg
58.85 UK mpg
20.83 km/l
CO2 emissions (NEDC, WLTP equivalent) 111 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 173 km/h
107.5 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 10.8 kg/Hp, 92.5 Hp/tonne
Weight-to-torque ratio 7.6 kg/Nm, 132.2 Nm/tonne
Engine specs
Power 84 Hp @ 6000 rpm.
Power per litre 70.2 Hp/l
Torque 120 Nm @ 4200 rpm.
88.51 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code G4LF
Engine displacement 1197 cm3
73.05 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 75.6 mm
2.98 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.4 l
5.71 US qt | 4.75 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 908-1019 kg
2001.8 – 2246.51 lbs.
Max. weight 1415 kg
3119.54 lbs.
Max load 396-507 kg
873.03 – 1117.74 lbs.
Trunk (boot) space – minimum 255 l
9.01 cu. ft.
Trunk (boot) space – maximum 1010 l
35.67 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 3595-3670 mm
141.54 – 144.49 in.
Width 1595-1625 mm
62.8 – 63.98 in.
Width including mirrors 1880-1910 mm
74.02 – 75.2 in.
Height 1485-1500 mm
58.46 – 59.06 in.
Wheelbase 2400 mm
94.49 in.
Front track 1390-1406 mm
54.72 – 55.35 in.
Rear (Back) track 1402-1415 mm
55.2 – 55.71 in.
Front overhang 675-710 mm
26.57 – 27.95 in.
Rear overhang 520-560 mm
20.47 – 22.05 in.
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs, 256 mm
Rear brakes Disc, 244 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14 86T; 185/55 R15 86H; 195/45 R16 84V
Wheel rims size 5.5J x 14; 6J x 15; 6.5J x 16
