Specifications: Kia Picanto III (facelift 2023) 1.0 (68 Hp) 4 Seat 2025

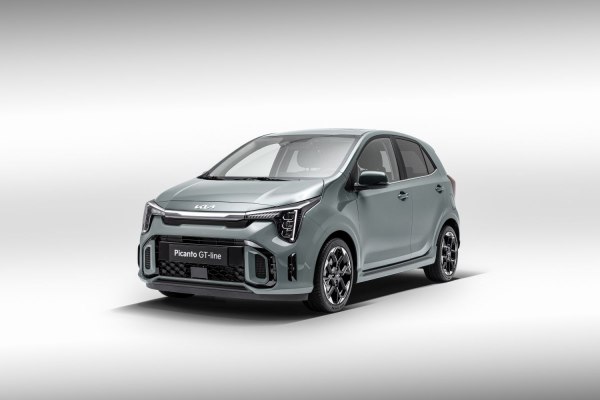

2024 Kia Picanto III (facelift 2023) - Photo 1

Kia Picanto III (facelift 2023) 1.0 (68 Hp) 4 Seat – Full specifications
General information
Brand Kia
Model Picanto
Generation Picanto III (facelift 2023)
Modification (Engine) 1.0 (68 Hp) 4 Seat
Start of production July, 2025 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
Fuel consumption at Medium speed (WLTP) 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel consumption at high speed (WLTP) 4.8 l/100 km
49 US mpg
58.85 UK mpg
20.83 km/l
Fuel consumption at very high speed (WLTP) 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Combined fuel consumption (WLTP) 5.6 l/100 km
42 US mpg
50.44 UK mpg
17.86 km/l
CO2 emissions (WLTP) 127 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.7 sec
Acceleration 0 – 62 mph 14.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14 sec
Maximum speed 161 km/h
100.04 mph
Emission standard Euro 6e bis
Weight-to-power ratio 13.9 kg/Hp, 72.1 Hp/tonne
Weight-to-torque ratio 9.8 kg/Nm, 101.8 Nm/tonne
Engine specs
Power 68 Hp @ 6000 rpm.
Power per litre 68.1 Hp/l
Torque 96 Nm @ 4000 rpm.
70.81 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code G3LD
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.2 l
5.49 US qt | 4.58 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 943-1049 kg
2078.96 – 2312.65 lbs.
Max. weight 1380 kg
3042.38 lbs.
Max load 331-437 kg
729.73 – 963.42 lbs.
Trunk (boot) space – minimum 255 l
9.01 cu. ft.
Trunk (boot) space – maximum 1010 l
35.67 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Max. roof load 60 kg
132.28 lbs.
Dimensions
Length 3605 mm
141.93 in.
Width 1595 mm
62.8 in.
Height 1485 mm
58.46 in.
Wheelbase 2400 mm
94.49 in.
Front track 1394-1406 mm
54.88 – 55.35 in.
Rear (Back) track 1402-1414 mm
55.2 – 55.67 in.
Front overhang 685 mm
26.97 in.
Rear overhang 520 mm
20.47 in.
Ride height (ground clearance) 141 mm
5.55 in.
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Coil spring, Elastic beam
Front brakes Disc, 256 mm
Rear brakes Drum, 203 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14 86T; 185/55 R15 86H; 195/45 R16 84V
Wheel rims size 5.5J x 14 ET45; 6.0J x 15 ET51; 6.5J x 16 ET51
