Specifications: Kia PV5 Passenger 71.2 kWh (163 Hp) Long Range 2025

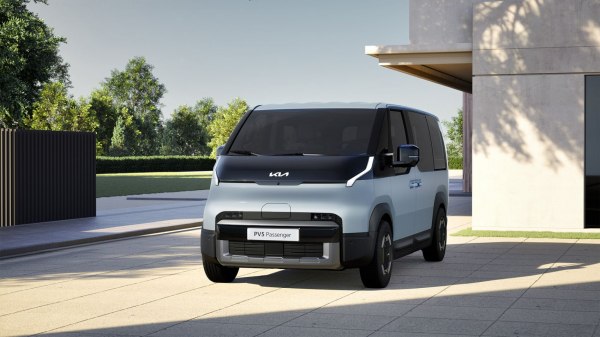

2026 Kia PV5 Passenger - Photo 1

Kia PV5 Passenger 71.2 kWh (163 Hp) Long Range – Full specifications
General information
Brand Kia
Model PV5
Generation PV5 Passenger
Modification (Engine) 71.2 kWh (163 Hp) Long Range
Start of production May, 2025 year
Powertrain Architecture BEV (Electric Vehicle)
Body type Minivan
Seats 5-6
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 10.7 sec
Acceleration 0 – 62 mph 10.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.2 sec
Maximum speed 135 km/h
83.89 mph
Electric cars and hybrids specs
Gross battery capacity 71.2 kWh
Battery voltage 400 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor
All-electric range (WLTP) 400.7 km
248.98 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 163 Hp
Electric motor Torque 250 Nm

184.39 lb.-ft.
Electric motor location Front axle, Transverse
Electric motor type Synchronous
System power 163 Hp
System torque 250 Nm
184.39 lb.-ft.

Space, Volume and weights
Max. weight 2600 kg
5732.02 lbs.
Trunk (boot) space – minimum 1320 l
46.62 cu. ft.
Trunk (boot) space – maximum 2315 l
81.75 cu. ft.
Permitted trailer load with brakes (12%) 750 kg
1653.47 lbs.
Dimensions
Length 4695 mm
184.84 in.
Width 1895 mm
74.61 in.
Height 1915 mm
75.39 in.
Wheelbase 2995 mm
117.91 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Torsion
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R16
Wheel rims size 16
