Specifications: Kia Retona (CE) 2.0 D (87 Hp) 1997, 1998, 1999, 2000, 2001, 2002, 2003

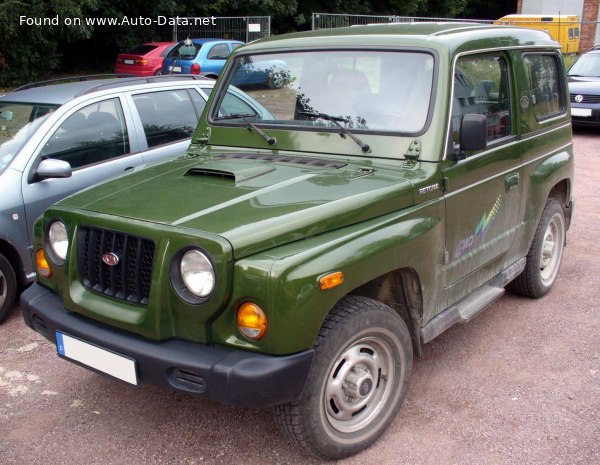

1998 Kia Retona (CE) - Photo 1

Kia Retona (CE) 2.0 D (87 Hp) – Full specifications
General information
Brand Kia
Model Retona
Generation Retona (CE)
Modification (Engine) 2.0 D (87 Hp)
Start of production 1997 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 11.5 l/100 km
20.45 US mpg
24.56 UK mpg
8.7 km/l
Fuel consumption (economy) – extra urban 9.1 l/100 km
25.85 US mpg
31.04 UK mpg
10.99 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 20.5 sec
Acceleration 0 – 62 mph 20.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 19.5 sec
Maximum speed 120 km/h
74.56 mph
Weight-to-power ratio 17.3 kg/Hp, 57.8 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 132.9 Nm/tonne
Engine specs
Power 87 Hp @ 4000 rpm.
Power per litre 43.5 Hp/l
Torque 200 Nm @ 2000 rpm.
147.51 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code RF
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 21:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 6.4 l
6.76 US qt | 5.63 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1505 kg
3317.96 lbs.
Trunk (boot) space – minimum 394 l
13.91 cu. ft.
Trunk (boot) space – maximum 1235 l
43.61 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4000 mm
157.48 in.
Width 1745 mm
68.7 in.
Height 1835 mm
72.24 in.
Wheelbase 2360 mm
92.91 in.
Front track 1440 mm
56.69 in.
Rear (Back) track 1440 mm
56.69 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 215/75 R15
Wheel rims size 15
