Specifications: Kia Rio IV Hatchback (YB, facelift 2020) 1.0 T-GDI (120 Hp) Mild Hybrid 2020, 2021, 2022, 2023, 2024, 2025

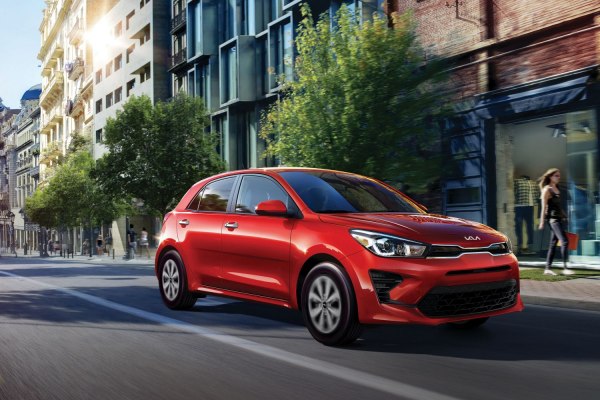

2021 Kia Rio IV Hatchback (YB, facelift 2020) - Photo 1

Kia Rio IV Hatchback (YB, facelift 2020) 1.0 T-GDI (120 Hp) Mild Hybrid – Full specifications
General information
Brand Kia
Model Rio
Generation Rio IV Hatchback (YB, facelift 2020)
Modification (Engine) 1.0 T-GDI (120 Hp) Mild Hybrid
Start of production August, 2020 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
CO2 emissions (NEDC, WLTP equivalent) 103 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 9.4 kg/Hp, 106.2 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.2 Nm/tonne
Engine specs
Power 120 Hp @ 6000 rpm.
Power per litre 120.2 Hp/l
Torque 172 Nm @ 1500-4000 rpm.
126.86 lb.-ft. @ 1500-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code G3LF
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1130-1228 kg
2491.22 – 2707.28 lbs.
Max. weight 1650 kg
3637.63 lbs.
Max load 422-520 kg
930.35 – 1146.4 lbs.
Trunk (boot) space – minimum 325 l
11.48 cu. ft.
Trunk (boot) space – maximum 1103 l
38.95 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 70 kg
154.32 lbs.
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4065-4070 mm
160.04 – 160.24 in.
Width 1725 mm
67.91 in.
Width including mirrors 1993 mm
78.46 in.
Height 1450 mm
57.09 in.
Wheelbase 2580 mm
101.57 in.
Front track 1512 mm
59.53 in.
Rear (Back) track 1518 mm
59.76 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Elastic beam
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/55 R16 87H; 205/45 R17 88V
Wheel rims size 6.0J x 16; 6.5J x 17
