Specifications: Kia Rio IV Sedan (FBUC, facelift 2020) 1.6 Gamma (123 Hp) 2020, 2021, 2022, 2023, 2024, 2025

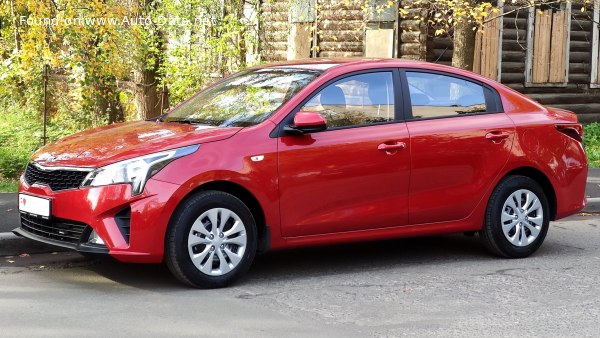

2021 Kia Rio IV Sedan (FB/UC, facelift 2020) - Photo 1

Kia Rio IV Sedan (FB/UC, facelift 2020) 1.6 Gamma (123 Hp) – Full specifications
General information
Brand Kia
Model Rio
Generation Rio IV Sedan (FB/UC, facelift 2020)
Modification (Engine) 1.6 Gamma (123 Hp)
Start of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.34 US mpg
44.84 UK mpg
15.87 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 193 km/h
119.92 mph
Emission standard Euro 5
Weight-to-power ratio 9.4 kg/Hp, 106 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 130.2 Nm/tonne
Engine specs
Power 123 Hp @ 6300 rpm.
Power per litre 77.3 Hp/l
Torque 151 Nm @ 4850 rpm.
111.37 lb.-ft. @ 4850 rpm.
Engine layout Front, Transverse
Engine displacement 1591 cm3
97.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.4 mm
3.36 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1160 kg
2557.36 lbs.
Max. weight 1580 kg
3483.3 lbs.
Max load 420 kg
925.94 lbs.
Trunk (boot) space – minimum 480 l
16.95 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4420 mm
174.02 in.
Width 1740 mm
68.5 in.
Height 1470 mm
57.87 in.
Wheelbase 2600 mm
102.36 in.
Front track 1516 mm
59.69 in.
Rear (Back) track 1524 mm
60 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 185/65 R15 88H; 195/55 R16 87H; 205/45 R17 88V
Wheel rims size 6J x 15; 6J x 16; 6.5J x 17
