Specifications: Kia Shuma (FB) 1.8 i 16V (110 Hp) 1997, 1998, 1999, 2000, 2001

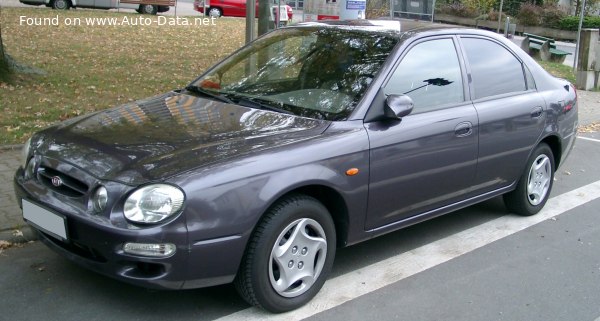

1998 Kia Shuma (FB) - Photo 1

Kia Shuma (FB) 1.8 i 16V (110 Hp) – Full specifications
General information
Brand Kia
Model Shuma
Generation Shuma (FB)
Modification (Engine) 1.8 i 16V (110 Hp)
Start of production 1997 year
End of production 2001 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.6 l/100 km
18.67 US mpg
22.42 UK mpg
7.94 km/l
Fuel consumption (economy) – extra urban 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 196 km/h
121.79 mph
Weight-to-power ratio 10.4 kg/Hp, 96.5 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.3 Nm/tonne
Engine specs
Power 110 Hp @ 5750 rpm.
Power per litre 61.3 Hp/l
Torque 152 Nm @ 4400 rpm.
112.11 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code T8D
Engine displacement 1793 cm3
109.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 87 mm
3.43 in.
Compression ratio 9.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1140 kg
2513.27 lbs.
Max. weight 1640 kg
3615.58 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 328 l
11.58 cu. ft.
Trunk (boot) space – maximum 780 l
27.55 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4475 mm
176.18 in.
Width 1711 mm
67.36 in.
Height 1427 mm
56.18 in.
Wheelbase 2560 mm
100.79 in.
Front track 1465 mm
57.68 in.
Rear (Back) track 1455 mm
57.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R14
Wheel rims size 14
