Specifications: Kia Sorento IV (facelift 2024) 1.6 T-GDI (215 Hp) Full Hybrid Automatic 2024, 2025

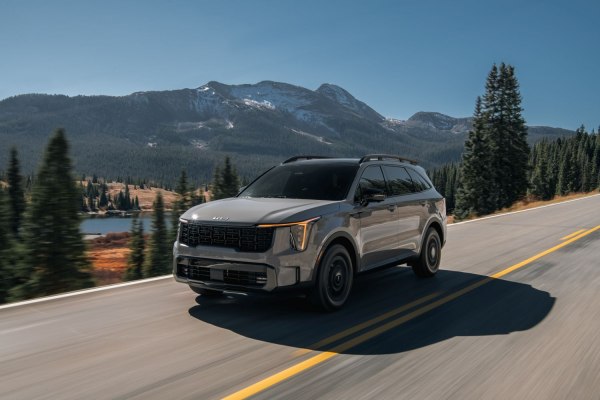

2024 Kia Sorento IV (facelift 2024) - Photo 1

Kia Sorento IV (facelift 2024) 1.6 T-GDI (215 Hp) Full Hybrid Automatic – Full specifications
General information
Brand Kia
Model Sorento
Generation Sorento IV (facelift 2024)
Modification (Engine) 1.6 T-GDI (215 Hp) Full Hybrid Automatic
Start of production May, 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 7.3 l/100 km
32.22 US mpg
38.7 UK mpg
13.7 km/l
Fuel consumption at Medium speed (WLTP) 5.0 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption at high speed (WLTP) 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel consumption at very high speed (WLTP) 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Combined fuel consumption (WLTP) 6.8 l/100 km
34.59 US mpg
41.54 UK mpg
14.71 km/l
CO2 emissions (WLTP) 153 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 183 km/h
113.71 mph
Emission standard Euro 6e
Weight-to-power ratio 8.6 kg/Hp, 116 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 198 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.49 kWh
Battery voltage 270 V
Battery technology Lithium-polymer (LiPo)
Battery weight 40 kg
88.18 lbs.
Max speed (electric) 120 km/h

74.56 mph
Electric motor 1
Electric motor power 60 Hp @ 1600-2000 rpm.
Electric motor Torque 264 Nm @ 0-1600 rpm.

194.72 lb.-ft. @ 0-1600 rpm.
Electric motor type Synchronous
System power 215 Hp
System torque 367 Nm
270.69 lb.-ft.
Internal combustion engine specs
Power 160 Hp @ 5500 rpm.
Power per litre 100.1 Hp/l
Torque 265 Nm @ 1500-3500 rpm.
195.45 lb.-ft. @ 1500-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code G4FT
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75.6 mm
2.98 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.9 l
8.35 US qt | 6.95 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1854-2007 kg
4087.37 – 4424.68 lbs.
Max. weight 2510 kg
5533.6 lbs.
Max load 503-656 kg
1108.93 – 1446.23 lbs.
Trunk (boot) space – minimum 697-902 l
24.61 – 31.85 cu. ft.
Trunk (boot) space – maximum 2085 l
73.63 cu. ft.
Fuel tank capacity 67 l
17.7 US gal | 14.74 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1110 kg
2447.13 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4815 mm
189.57 in.
Width 1900 mm
74.8 in.
Width including mirrors 2170 mm
85.43 in.
Height 1700 mm
66.93 in.
Wheelbase 2815 mm
110.83 in.
Front track 1646 mm
64.8 in.
Rear (Back) track 1656 mm
65.2 in.
Front overhang 925 mm
36.42 in.
Rear overhang 1075 mm
42.32 in.
Ride height (ground clearance) 174 mm
6.85 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Approach angle 16.8°
Departure angle 21.2°
Ramp-over (brakeover) angle 15.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Spring Strut, Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Spring Strut, Double wishbone, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 325 mm
Rear brakes Disc, 305 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19 105V
Wheel rims size 7.5J x 19 ET 49.5
