Specifications: Kia Soul I 1.6 (126 Hp) 2009, 2010, 2011

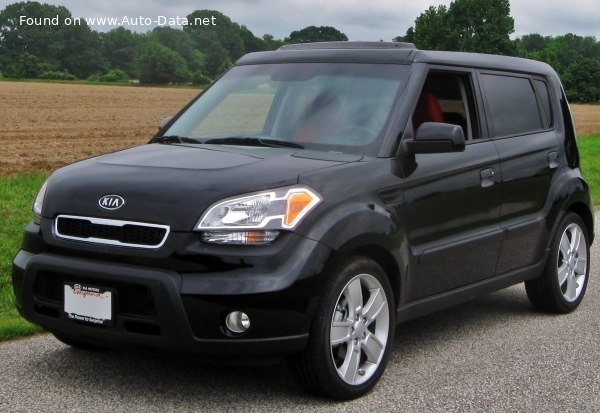

2009 Kia Soul I - Photo 1

Kia Soul I 1.6 (126 Hp) – Full specifications
General information
Brand Kia
Model Soul
Generation Soul I
Modification (Engine) 1.6 (126 Hp)
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.9 l/100 km
29.77 US mpg
35.76 UK mpg
12.66 km/l
Fuel consumption (economy) – extra urban 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11 sec
Acceleration 0 – 62 mph 11 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 177 km/h
109.98 mph
Emission standard Euro 4
Weight-to-power ratio 10.1 kg/Hp, 99.2 Hp/tonne
Weight-to-torque ratio 8.4 kg/Nm, 118.9 Nm/tonne
Engine specs
Power 126 Hp @ 6200 rpm.
Power per litre 79.2 Hp/l
Torque 151 Nm @ 4200 rpm.
111.37 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code G4FC
Engine displacement 1591 cm3
97.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.3 l
3.49 US qt | 2.9 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1270 kg
2799.87 lbs.
Max. weight 1680 kg
3703.77 lbs.
Max load 410 kg
903.9 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 570 l
20.13 cu. ft.
Fuel tank capacity 48 l
12.68 US gal | 10.56 UK gal
Dimensions
Length 4105 mm
161.61 in.
Width 1785 mm
70.28 in.
Height 1661 mm
65.39 in.
Wheelbase 2550 mm
100.39 in.
Front track 1570 mm
61.81 in.
Rear (Back) track 1575 mm
62.01 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65R15
