Specifications: Kia Soul II EV 31 kWh (110 Hp) 2014, 2015, 2016, 2017

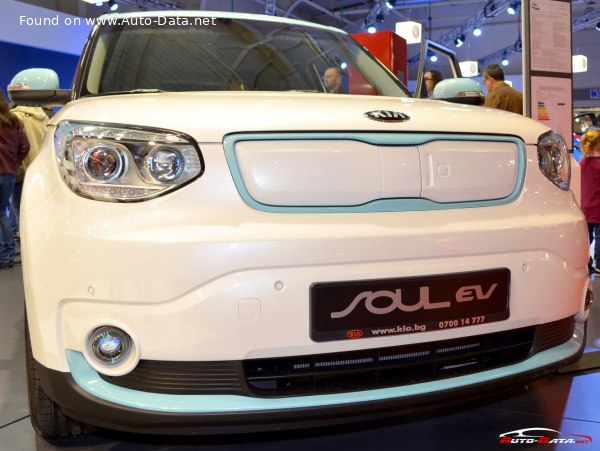

2014 Kia Soul II - Photo 1

Kia Soul II EV 31 kWh (110 Hp) – Full specifications
General information
Brand Kia
Model Soul
Generation Soul II
Modification (Engine) EV 31 kWh (110 Hp)
Start of production 2014 year
End of production March, 2017 year
Powertrain Architecture BEV (Electric Vehicle)
Body type Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Electricity
Acceleration 0 – 100 km/h 11.2 sec
Acceleration 0 – 62 mph 11.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.6 sec
Maximum speed 145 km/h
90.1 mph
Weight-to-power ratio 13.5 kg/Hp, 73.8 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 31 kWh
Net (usable) battery capacity 27 kWh
Battery voltage 360 V
Battery technology Lithium-polymer (LiPo)
Battery weight 277 kg
610.68 lbs.
Battery location Below the floor
All-electric range (NEDC) 212 km
131.73 mi
Average Energy consumption (NEDC) 14.7 kWh/100 km

23.66 kWh/100 mi
142 MPGe
6.8 km/kWh
4.2 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 110 Hp @ 2730-8000 rpm.
Electric motor Torque 285 Nm @ 0-2730 rpm.

210.21 lb.-ft. @ 0-2730 rpm.
Electric motor model/code MG80
Electric motor location Front axle, Transverse
System power 110 Hp @ 2730-8000 rpm.
System torque 285 Nm @ 0-2730 rpm.
210.21 lb.-ft. @ 0-2730 rpm.

Space, Volume and weights
Kerb Weight 1490 kg
3284.89 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 470 kg
1036.17 lbs.
Trunk (boot) space – minimum 281 l
9.92 cu. ft.
Trunk (boot) space – maximum 891 l
31.47 cu. ft.
Dimensions
Length 4140 mm
162.99 in.
Width 1800 mm
70.87 in.
Width including mirrors 2100 mm
82.68 in.
Height 1593 mm
62.72 in.
Wheelbase 2570 mm
101.18 in.
Front track 1576 mm
62.05 in.
Rear (Back) track 1585 mm
62.4 in.
Front overhang 840 mm
33.07 in.
Rear overhang 730 mm
28.74 in.
Ride height (ground clearance) 151 mm
5.94 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Coil spring, Torsion
Front brakes Ventilated discs, 300 mm
Rear brakes Disc, 284 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16
Wheel rims size 6.5J x 16
