Specifications: Kia Soul II (facelift 2016) 1.6 CRDI (136 Hp) DCT 2016, 2017, 2018, 2019

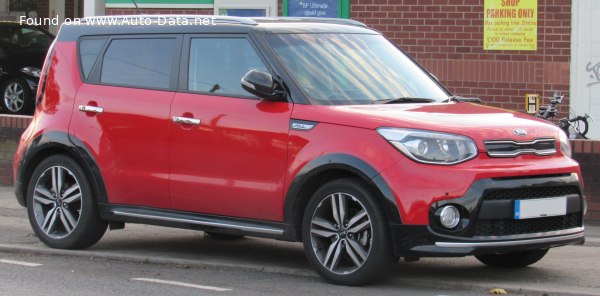

2016 Kia Soul II (facelift 2016) - Photo 1

Kia Soul II (facelift 2016) 1.6 CRDI (136 Hp) DCT – Full specifications
General information
Brand Kia
Model Soul
Generation Soul II (facelift 2016)
Modification (Engine) 1.6 CRDI (136 Hp) DCT
Start of production 2016 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – extra urban 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
Fuel consumption (economy) – combined 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
CO2 emissions 130 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.1 sec
Acceleration 0 – 62 mph 11.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 182 km/h
113.09 mph
Emission standard Euro 6
Weight-to-power ratio 9.9 kg/Hp, 100.7 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 222.2 Nm/tonne
Engine specs
Power 136 Hp @ 4000 rpm.
Power per litre 86 Hp/l
Torque 300 Nm @ 1750-2500 rpm.
221.27 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code D4FB
Engine displacement 1582 cm3
96.54 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77.2 mm
3.04 in.
Piston Stroke 84.5 mm
3.33 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.8 l
7.19 US qt | 5.98 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1350-1492 kg
2976.24 – 3289.3 lbs.
Max. weight 1940 kg
4276.97 lbs.
Max load 448-590 kg
987.67 – 1300.73 lbs.
Trunk (boot) space – minimum 238 l
8.4 cu. ft.
Trunk (boot) space – maximum 878 l
31.01 cu. ft.
Fuel tank capacity 54 l
14.27 US gal | 11.88 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1100 kg
2425.08 lbs.
Permitted trailer load without brakes 550 kg
1212.54 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4140 mm
162.99 in.
Width 1800 mm
70.87 in.
Width including mirrors 2100 mm
82.68 in.
Height 1618 mm
63.7 in.
Wheelbase 2570 mm
101.18 in.
Front track 1560-1576 mm
61.42 – 62.05 in.
Rear (Back) track 1573-1588 mm
61.93 – 62.52 in.
Front overhang 840 mm
33.07 in.
Rear overhang 730 mm
28.74 in.
Ride height (ground clearance) 143 mm
5.63 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DCT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17 94V; 235/45 R18 94V
Wheel rims size 6.5J x 17; 7.5J x 18
