Specifications: Kia Sportage I 2.0i 16V (118 Hp) Automatic 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

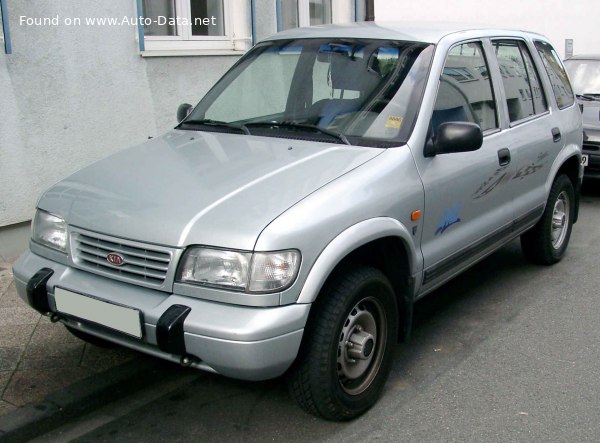

1997 Kia Sportage I - Photo 1

Kia Sportage I 2.0i 16V (118 Hp) Automatic – Full specifications
General information
Brand Kia
Model Sportage
Generation Sportage I
Modification (Engine) 2.0i 16V (118 Hp) Automatic
Start of production 1998 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.22 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 8.9 l/100 km
26.43 US mpg
31.74 UK mpg
11.24 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 15 sec
Acceleration 0 – 62 mph 15 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.3 sec
Maximum speed 163 km/h
101.28 mph
Weight-to-power ratio 12.2 kg/Hp, 81.9 Hp/tonne
Weight-to-torque ratio 8.7 kg/Nm, 115.3 Nm/tonne
Engine specs
Power 118 Hp @ 5300 rpm.
Power per litre 59.1 Hp/l
Torque 166 Nm @ 4500 rpm.
122.44 lb.-ft. @ 4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code FE
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l
7.93 US qt | 6.6 UK qt

Space, Volume and weights
Kerb Weight 1440 kg
3174.66 lbs.
Max. weight 1930 kg
4254.92 lbs.
Max load 490 kg
1080.27 lbs.
Trunk (boot) space – minimum 373 l
13.17 cu. ft.
Trunk (boot) space – maximum 1510 l
53.33 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4316 mm
169.92 in.
Width 1764 mm
69.45 in.
Height 1695 mm
66.73 in.
Wheelbase 2650 mm
104.33 in.
Front track 1440 mm
56.69 in.
Rear (Back) track 1440 mm
56.69 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 205/70 R15
Wheel rims size 15
