Specifications: Kia Sportage IV (facelift 2018) 2.0 T-GDI (237 Hp) AWD Automatic 2020, 2021

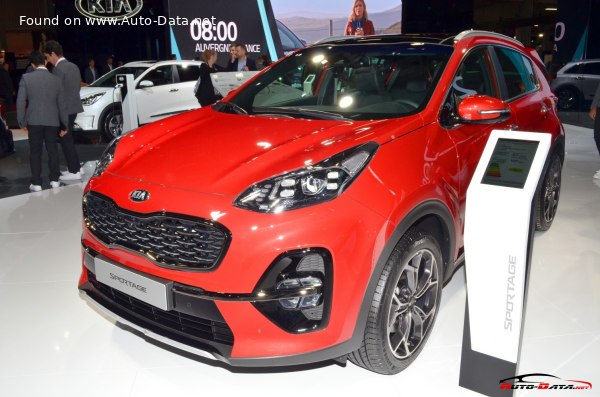

2018 Kia Sportage IV (facelift 2018) - Photo 1

Kia Sportage IV (facelift 2018) 2.0 T-GDI (237 Hp) AWD Automatic – Full specifications
General information
Brand Kia
Model Sportage
Generation Sportage IV (facelift 2018)
Modification (Engine) 2.0 T-GDI (237 Hp) AWD Automatic
Start of production 2020 year
End of production July, 2021 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard WCC+UCC
Weight-to-power ratio 7.2 kg/Hp, 138.8 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 206.7 Nm/tonne
Engine specs
Power 237 Hp @ 6000 rpm.
Power per litre 118.6 Hp/l
Torque 353 Nm @ 1450-3500 rpm.
260.36 lb.-ft. @ 1450-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code G4KH
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC, CVVT
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.2 l
7.61 US qt | 6.34 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1708-1813 kg
3765.5 – 3996.98 lbs.
Trunk (boot) space – minimum 869 l
30.69 cu. ft.
Trunk (boot) space – maximum 1702 l
60.11 cu. ft.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Permitted trailer load with brakes (12%) 907 kg
1999.59 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4481 mm
176.42 in.
Width 1854 mm
72.99 in.
Height 1656 mm
65.2 in.
Wheelbase 2670 mm
105.12 in.
Front track 1608 mm
63.31 in.
Rear (Back) track 1621 mm
63.82 in.
Ride height (ground clearance) 173 mm
6.81 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 28°
Departure angle 24.6°
Ramp-over (brakeover) angle 19.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/45 R19
Wheel rims size 7.5J x 19
