Specifications: Kia Sportage V (facelift 2024) 1.6 T-GDI (230 Hp) Hybrid 4WD Automatic 2024, 2025

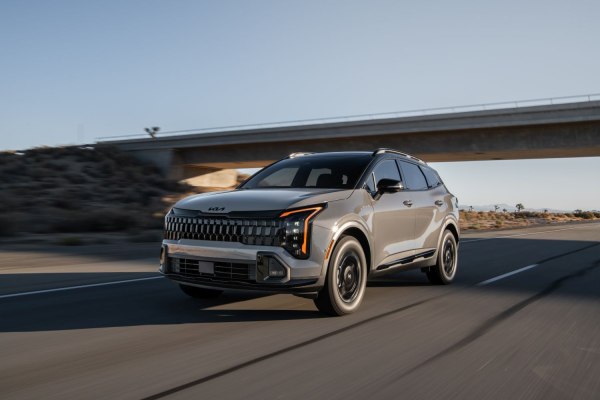

2025 Kia Sportage V (facelift 2024) - Photo 1

Kia Sportage V (facelift 2024) 1.6 T-GDI (230 Hp) Hybrid 4WD Automatic – Full specifications
General information
Brand Kia
Model Sportage
Generation Sportage V (facelift 2024)
Modification (Engine) 1.6 T-GDI (230 Hp) Hybrid 4WD Automatic
Start of production November, 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.6-6.9 l/100 km
35.64 – 34.09 US mpg
42.8 – 40.94 UK mpg
15.15 – 14.49 km/l
Fuel consumption (economy) – extra urban 7-7.1 l/100 km
33.6 – 33.13 US mpg
40.35 – 39.79 UK mpg
14.29 – 14.08 km/l
Fuel consumption (economy) – combined 6.8-7 l/100 km
34.59 – 33.6 US mpg
41.54 – 40.35 UK mpg
14.71 – 14.29 km/l
CO2 emissions 110-113 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.4 kg/Hp, 134.5 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 155 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-polymer (LiPo)
Battery location Below the floor, under the rear seats
Electric motor 1
Electric motor power 65 Hp
Electric motor Torque 264 Nm

194.72 lb.-ft.
Electric motor location Between the combustion engine and the transmission
System power 230 Hp
Internal combustion engine specs
Power 180 Hp @ 5500 rpm.
Power per litre 112.6 Hp/l
Torque 265 Nm @ 1500-4500 rpm.
195.45 lb.-ft. @ 1500-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code G4FT
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.8 l
5.07 US qt | 4.22 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.1 l
8.56 US qt | 7.13 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1710-1745 kg
3769.9 – 3847.07 lbs.
Dimensions
Length 4685 mm
184.45 in.
Width 1865 mm
73.43 in.
Height 1665 mm
65.55 in.
Wheelbase 2755 mm
108.46 in.
Front track 1615-1620 mm
63.58 – 63.78 in.
Rear (Back) track 1622-1627 mm
63.86 – 64.06 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Wheel rims size 17; 18; 19
