Specifications: Kia Stonic (facelift 2020) 1.0 T-GDI EcoDynamics+ (120 Hp) Mild Hybrid DCT7 2020, 2021, 2022, 2023, 2024

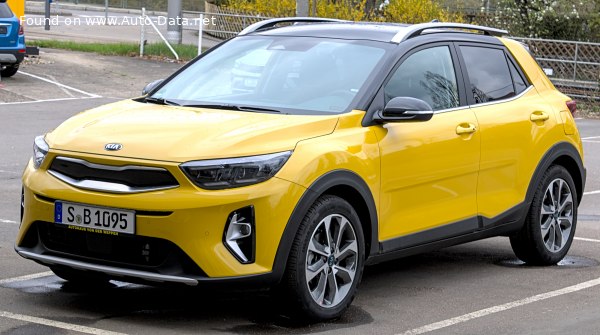

2020 Kia Stonic (facelift 2020) - Photo 1

Kia Stonic (facelift 2020) 1.0 T-GDI EcoDynamics+ (120 Hp) Mild Hybrid DCT7 – Full specifications
General information
Brand Kia
Model Stonic
Generation Stonic (facelift 2020)
Modification (Engine) 1.0 T-GDI EcoDynamics+ (120 Hp) Mild Hybrid DCT7
Start of production September, 2020 year
End of production May, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Crossover
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
CO2 emissions (WLTP) 129 g/km
Fuel consumption (economy) – urban (NEDC) 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel consumption (economy) – combined (NEDC) 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
CO2 emissions (NEDC) 107 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.4 sec
Acceleration 0 – 62 mph 10.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.9 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 9.9 kg/Hp, 101.3 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 168.8 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor location Front, Transverse
Internal combustion engine specs
Power 120 Hp @ 6000 rpm.
Power per litre 120.2 Hp/l
Torque 200 Nm @ 2000-3500 rpm.
147.51 lb.-ft. @ 2000-3500 rpm.
Engine layout Front, Transverse
Engine Model/Code G3LF
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1185-1288 kg
2612.48 – 2839.55 lbs.
Max. weight 1710 kg
3769.9 lbs.
Max load 422-525 kg
930.35 – 1157.43 lbs.
Trunk (boot) space – minimum 352 l
12.43 cu. ft.
Trunk (boot) space – maximum 1155 l
40.79 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 70 kg
154.32 lbs.
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4140 mm
162.99 in.
Width 1760 mm
69.29 in.
Width including mirrors 2025 mm
79.72 in.
Height 1520 mm
59.84 in.
Wheelbase 2580 mm
101.57 in.
Front track 1531-1537 mm
60.28 – 60.51 in.
Rear (Back) track 1539-1544 mm
60.59 – 60.79 in.
Front overhang 830 mm
32.68 in.
Rear overhang 730 mm
28.74 in.
Ride height (ground clearance) 165-183 mm
6.5 – 7.2 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Approach angle 14.9-16.4°
Departure angle 28.7-30.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DCT
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Coil spring, Elastic beam
Front brakes Ventilated discs, 280 mm
Rear brakes Disc, 262 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 185/65 R15; 195/55 R16; 205/55 R17
Wheel rims size 6J x 15; 6J x 16; 6.5J x 17
