Specifications: Kia Telluride (facelift 2023) 3.8 GDI V6 (291 Hp) AWD Automatic 2023, 2024, 2025

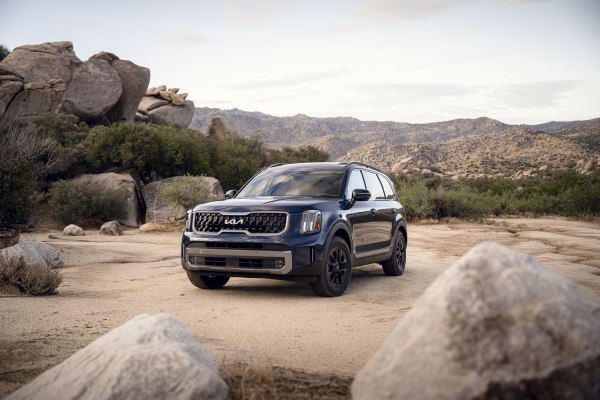

2023 Kia Telluride (facelift 2023) - Photo 1

Kia Telluride (facelift 2023) 3.8 GDI V6 (291 Hp) AWD Automatic – Full specifications
General information
Brand Kia
Model Telluride
Generation Telluride (facelift 2023)
Modification (Engine) 3.8 GDI V6 (291 Hp) AWD Automatic
Start of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV70
Weight-to-power ratio 6.7 kg/Hp, 149.2 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 182 Nm/tonne
Engine specs
Power 291 Hp @ 6000 rpm.
Power per litre 77 Hp/l
Torque 355 Nm @ 5200 rpm.
261.83 lb.-ft. @ 5200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Lambda II / G6DN
Engine displacement 3778 cm3
230.55 cu. in.
Number of cylinders 6
Engine configuration V-engine
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, DUAL CVVT
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.2 l
12.89 US qt | 10.73 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1951-2052 kg
4301.22 – 4523.89 lbs.
Max. weight 2684 kg
5917.21 lbs.
Max load 632-733 kg
1393.32 – 1615.99 lbs.
Trunk (boot) space – minimum 595 l
21.01 cu. ft.
Trunk (boot) space – maximum 2464 l
87.02 cu. ft.
Fuel tank capacity 71 l
18.76 US gal | 15.62 UK gal
Permitted trailer load with brakes (12%) 2495 kg
5500.53 lbs.
Dimensions
Length 5001 mm
196.89 in.
Width 1989 mm
78.31 in.
Height 1760-1791 mm
69.29 – 70.51 in.
Wheelbase 2901 mm
114.21 in.
Front track 1707 mm
67.2 in.
Rear (Back) track 1717 mm
67.6 in.
Ride height (ground clearance) 203-213 mm
7.99 – 8.39 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 17-17.9°
Departure angle 22.4-23.2°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 340.36 mm
Rear brakes Disc, 304.8 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/60 R18; 245/50 R20
Wheel rims size 7.5J x 18; 7.5J x 20
