Specifications: Koenigsegg CCX R 4.8 V8 (1032 Hp) Special Edition Ethanol 2007, 2008, 2009, 2010

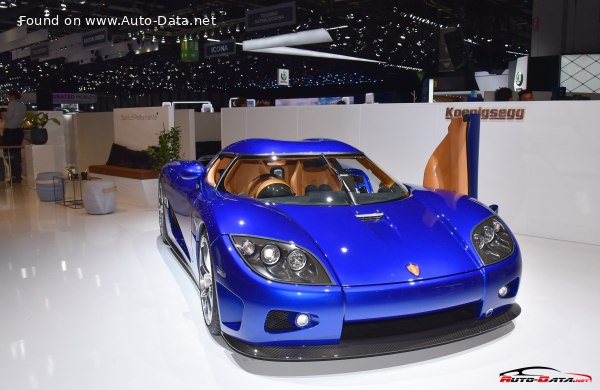

2006 Koenigsegg CCX - Photo 1

Koenigsegg CCX R 4.8 V8 (1032 Hp) Special Edition Ethanol – Full specifications
General information
Brand Koenigsegg
Model CC
Generation CCX
Modification (Engine) R 4.8 V8 (1032 Hp) Special Edition Ethanol
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Targa
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – extra urban 18 l/100 km
13.07 US mpg
15.69 UK mpg
5.56 km/l
Fuel consumption (economy) – combined 22 l/100 km
10.69 US mpg
12.84 UK mpg
4.55 km/l
Fuel Type Petrol / Ethanol – E85
Acceleration 0 – 100 km/h 2.9 sec
Acceleration 0 – 62 mph 2.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 2.8 sec
Acceleration 0 – 200 km/h 8.75 sec
Maximum speed 400 km/h
248.55 mph
100 km/h – 0 32 m
Emission standard Euro 4
Weight-to-power ratio 1.3 kg/Hp, 775.9 Hp/tonne
Weight-to-torque ratio 1.2 kg/Nm, 812 Nm/tonne
Engine specs
Power 1032 Hp @ 7000 rpm.
Power per litre 215 Hp/l
Torque 1080 Nm @ 5600 rpm.
796.57 lb.-ft. @ 5600 rpm.
Engine layout Rear, Longitudinal
Engine displacement 4800 cm3
292.91 cu. in.
Number of cylinders 8
Engine configuration V-engine
Compression ratio 9.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1330 kg
2932.15 lbs.
Trunk (boot) space – minimum 120 l
4.24 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4293 mm
169.02 in.
Width including mirrors 1996 mm
78.58 in.
Height 1114 mm
43.86 in.
Ride height (ground clearance) 100 mm
3.94 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/35 R19; 335/30 R20
Wheel rims size 9.5J x 19; 12.5J x 20
